Neutral - Engine Running (Hydraulic Circuits): Passages: Neutral

WARNING: This page is about a different variant/trim than selected.

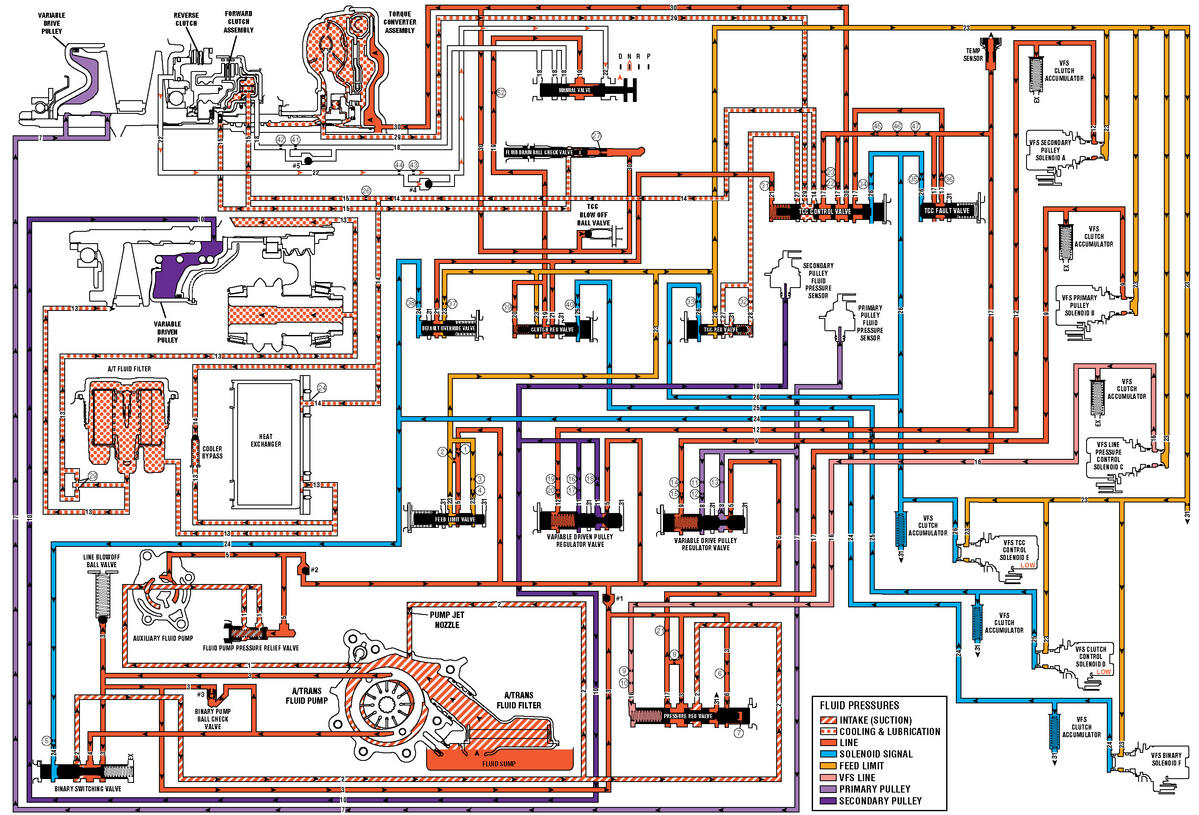

Fig 1: Identifying Neutral Hydraulic Fluid Flow Diagram

Courtesy of GENERAL MOTORS COMPANY
