Control Valve Solenoid Body - Control Valve Body Spacer Plate Side
WARNING: This page is about a different variant/trim than selected.

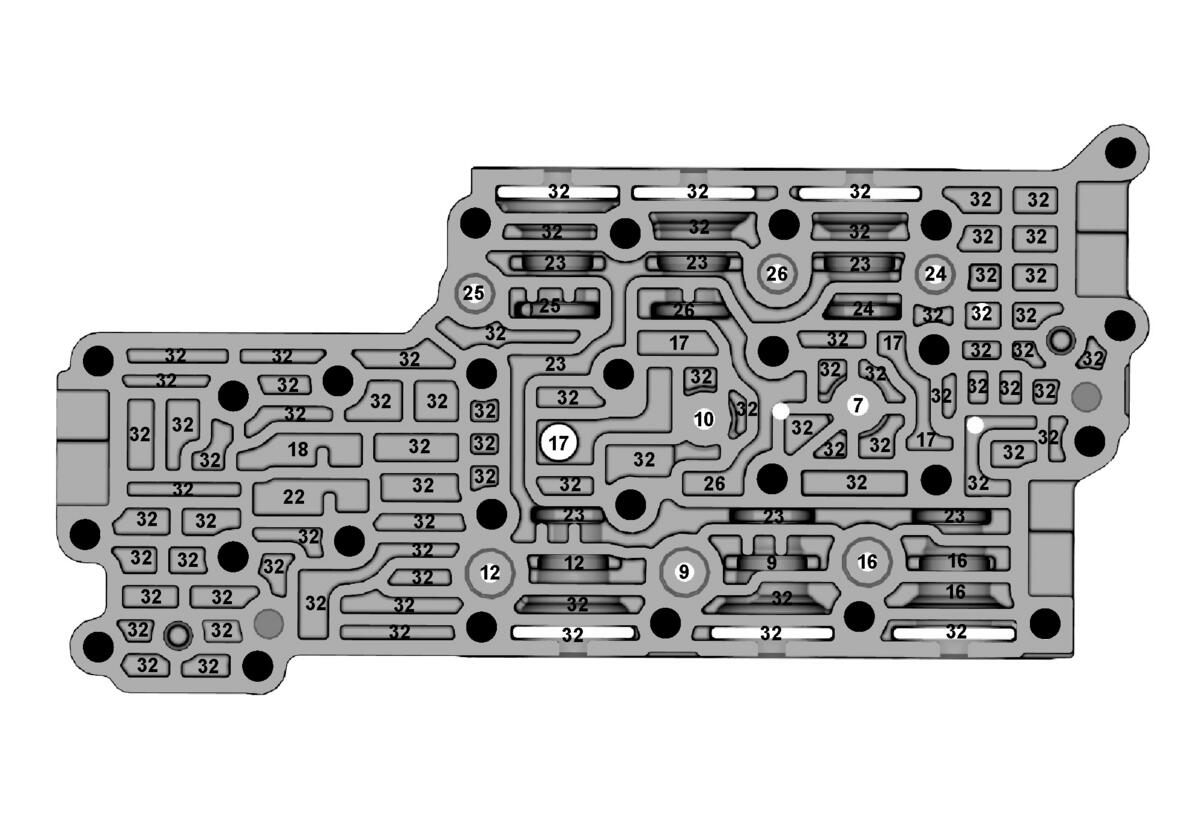

Fig 1: Identifying Control Valve Solenoid Body Fluid Passages - Control Valve Body Spacer Plate Side
| Callout | Component Name |
|---|---|
| 7 | Primary Pulley |
| 9 | Primary Pulley VFS Signal |
| 10 | Secondary Pulley |
| 12 | Secondary Pulley VFS Signal |
| 16 | Line VFS Signal |
| 17 | Converter Feed |
| 18 | Drive |
| 22 | Reverse |
| 23 | Feed Limit |
| 24 | Binary VFS Signal |
| 25 | Drive\Reverse Solenoid Signal |
| 26 | TCC Solenoid Signal |
| 32 | Void |
