Control Valve Solenoid Body - Control Valve Body Cover Side

WARNING: This page is about a different variant/trim than selected.

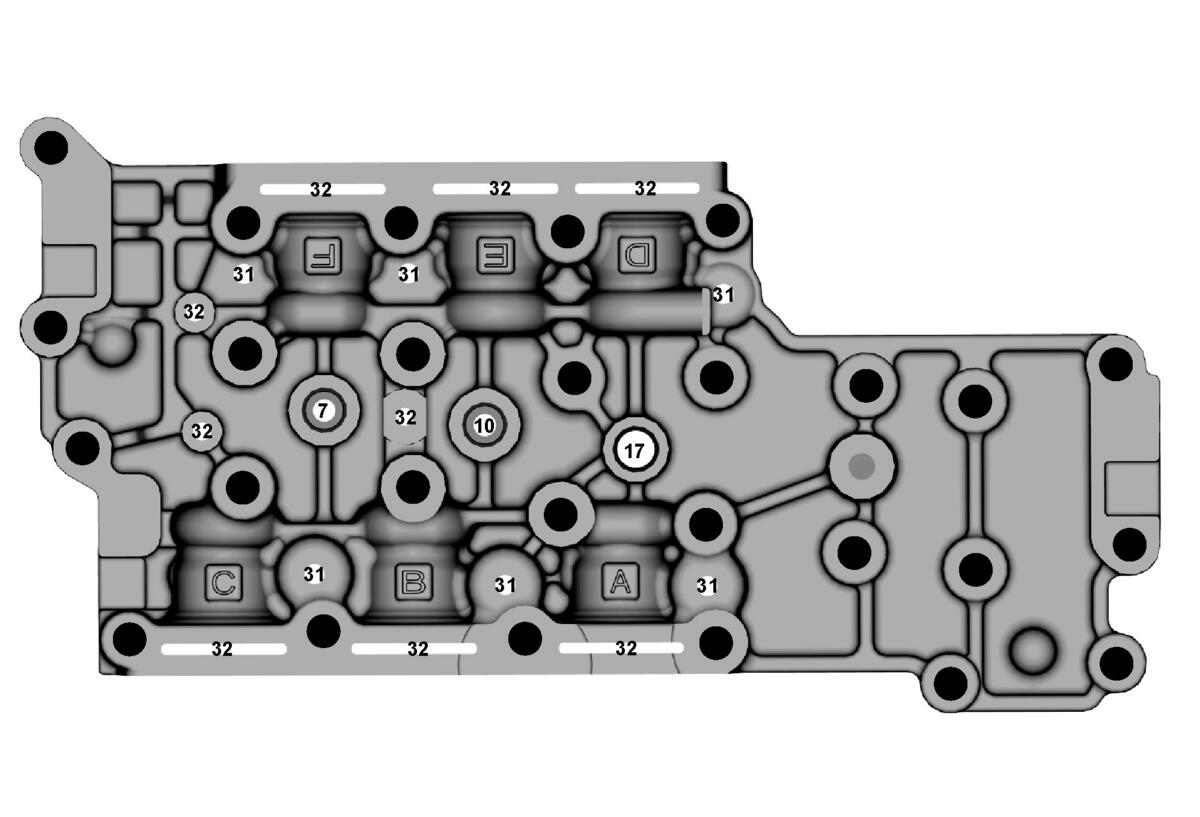

Fig 1: Identifying Control Valve Solenoid Body Fluid Passages - Control Valve Body Cover Side
GM4872886Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
7 Primary Pulley
10 Secondary Pulley
17 Converter Feed
31 Exhaust
32 Void
