Control Valve Body Spacer Plate - Control Valve Body Side
WARNING: This page is about a different variant/trim than selected.

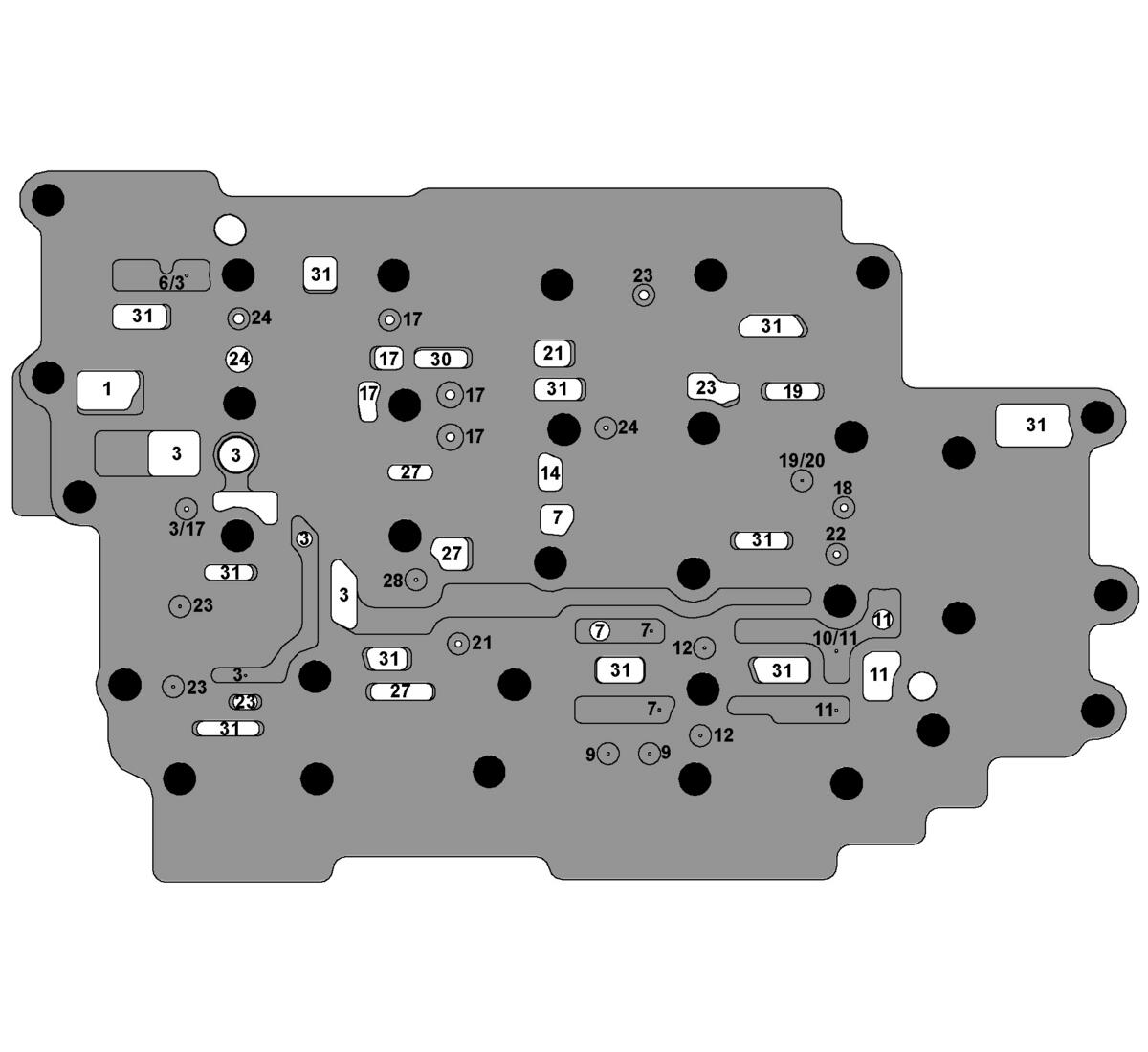

| Callout | Component Name |
|---|---|
| 1 | Suction |
| 3 | Line |
| 6 | Line Feedback |
| 7 | Primary Pulley |
| 9 | Primary Pulley VFS Signal |
| 10 | Secondary Pulley |
| 11 | Secondary Pulley Feed |
| 12 | Secondary Pulley VFS Signal |
| 14 | Cooler Feed |
| 17 | Converter Feed |
| 18 | Drive |
| 19 | Drive\Reverse Regulator Drive |
| 20 | Drive\Reverse Regulator Feedback |
| 21 | Drive\Reverse Feed |
| 22 | Reverse |
| 23 | Feed Limit |
| 24 | Binary VFS Signal |
| 27 | Regulator Apply |
| 28 | Regulator Apply Feedback |
| 30 | TCC Release |
| 31 | Exhaust |
