Auxiliary Control Valve Body Spacer Plate - Automatic Transmission Fluid Pump Body Side

WARNING: This page is about a different variant/trim than selected.

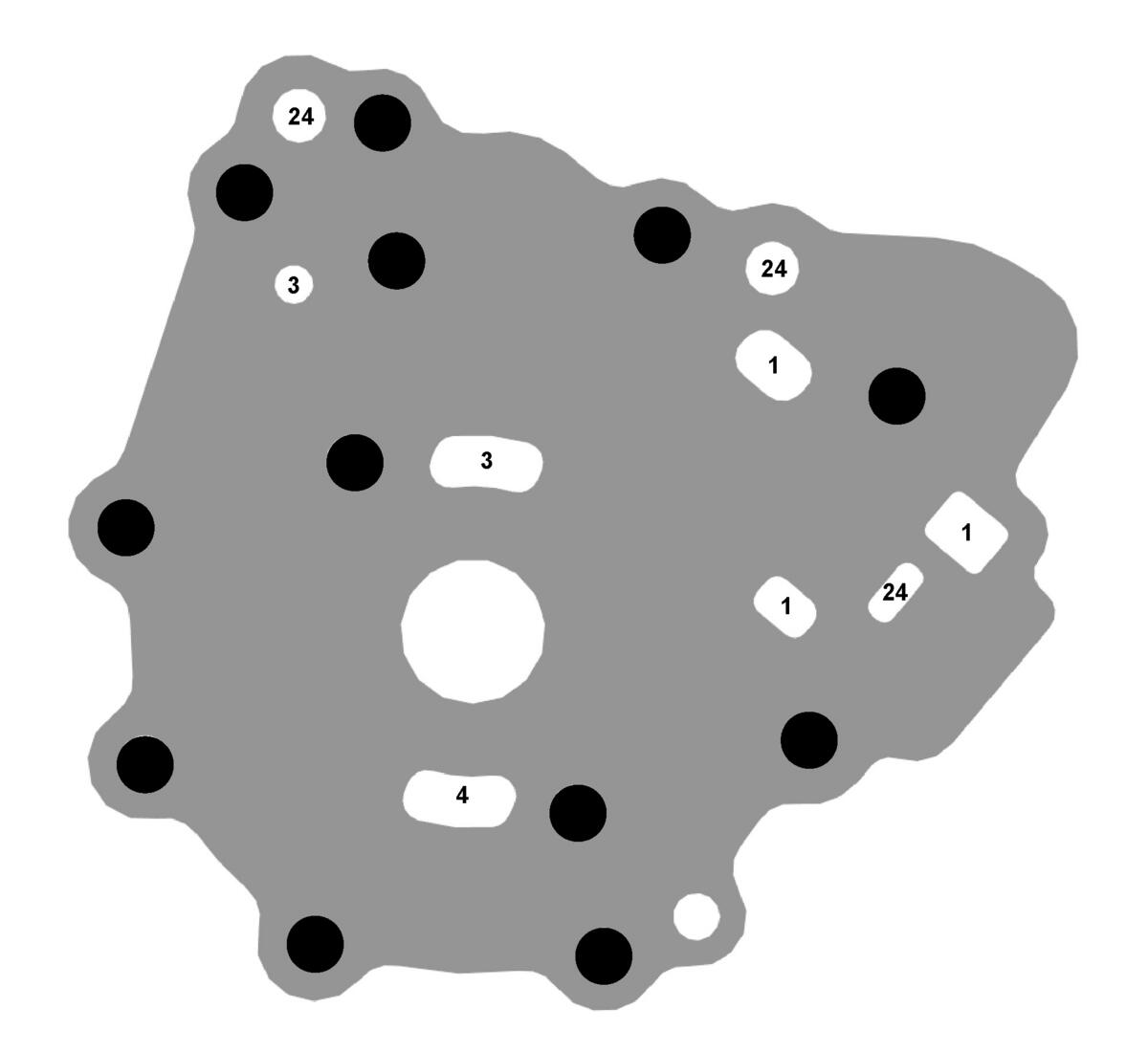

Fig 1: Identifying Auxiliary Control Valve Body Spacer Plate Fluid Passages - Automatic Transmission Fluid Pump Body Side
GM4872866Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Suction
3 Line
4 Secondary Line
24 Binary VFS Signal
