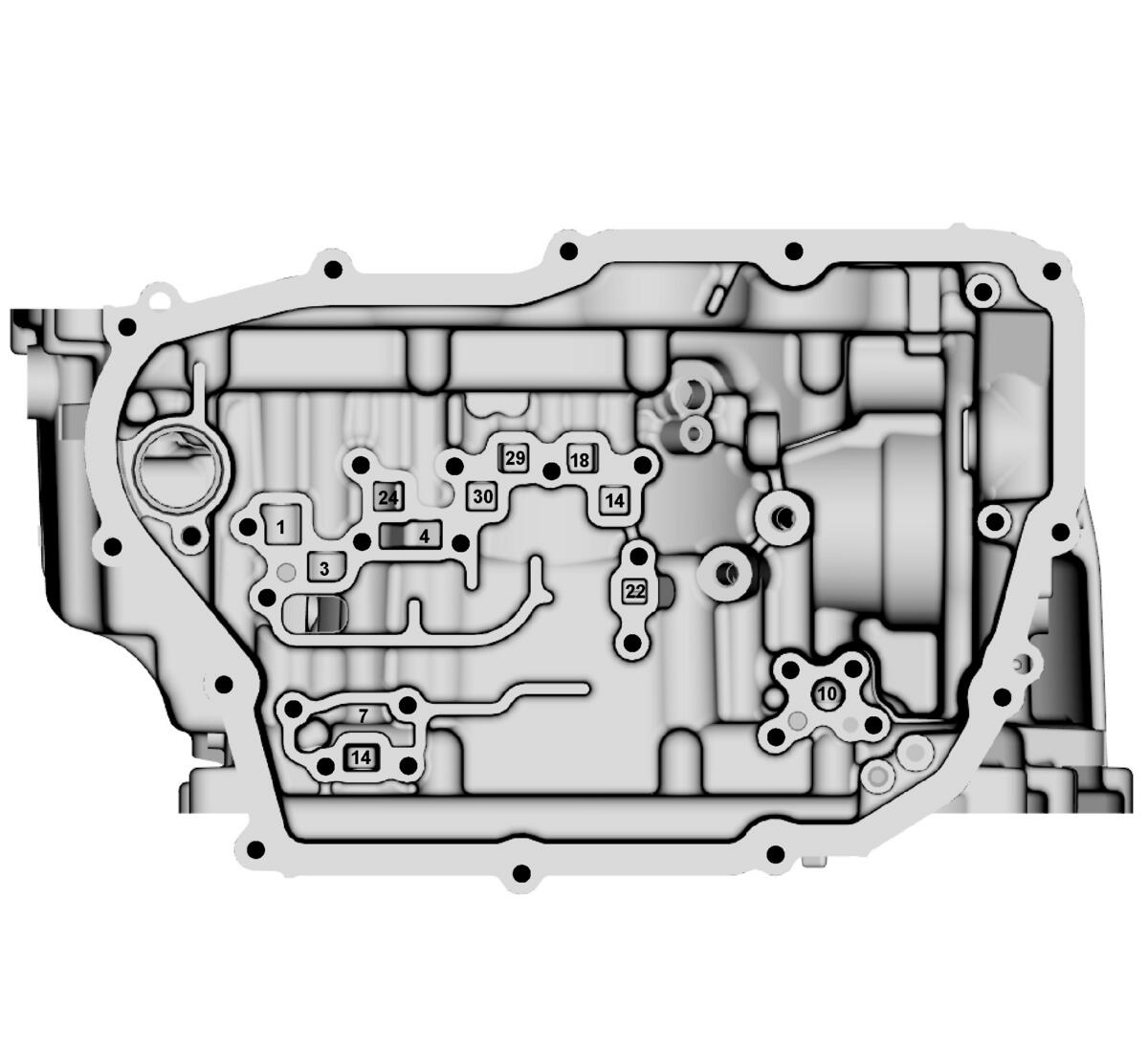

Automatic Transmission Case - Control Valve Channel Plate Side
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Suction |
| 3 |
Line |
| 4 |
Secondary Line |
| 7 |
Primary Pulley |
| 10 |
Secondary Pulley |
| 14 |
Cooler Feed |
| 18 |
Drive |
| 22 |
Reverse |
| 24 |
Binary VFS Signal |
| 29 |
TCC Apply |
| 30 |
TCC Release |
