Automatic Transmission Case - Automatic Transmission Case Cover Side

WARNING: This page is about a different variant/trim than selected.

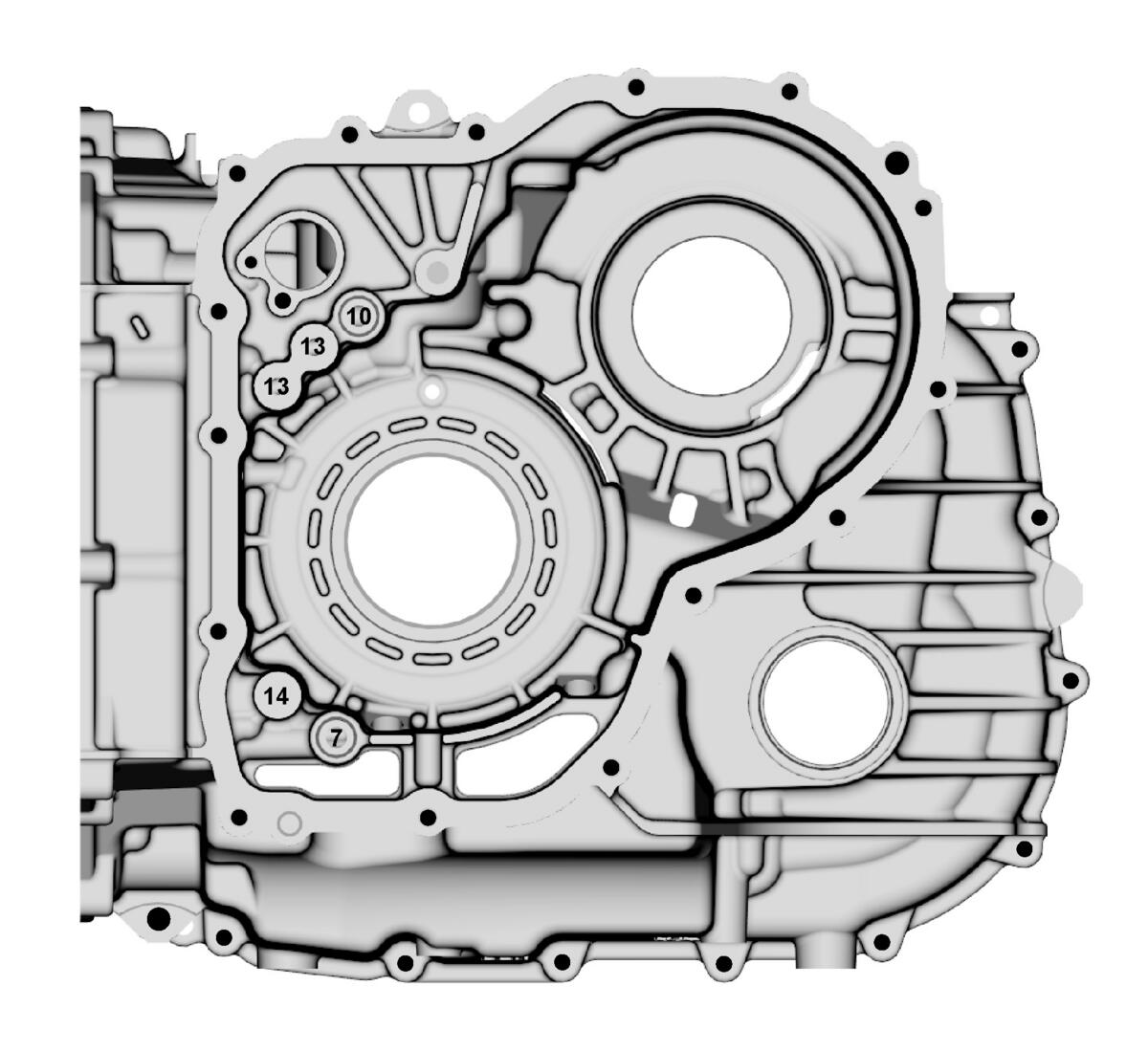

Fig 1: Identifying Automatic Transmission Case Fluid Passages - Automatic Transmission Case Cover Side
GM4872867Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
7 Primary Pulley
10 Secondary Pulley
13 Lube
14 Cooler Feed
