Transmission Wiring Harness Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

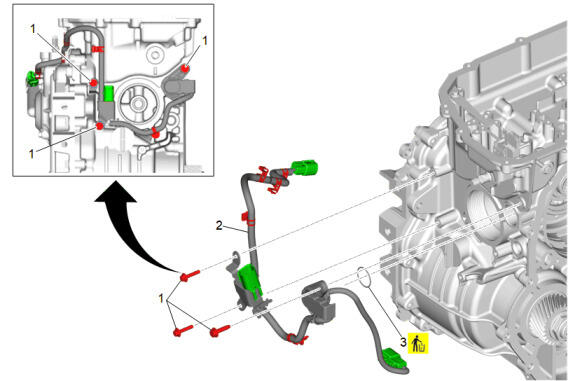

| Callout |
Component Name |
| 1 |
Wiring Harness Bracket Bolt [3x] M6 x 25 |
| 2 |
Automatic Transmission Wiring Harness |
| 3 |
Automatic Transmission Wiring Connector Seal
Procedure
Remove and DISCARD the seal. |
