Transmission Fluid Pump Disassemble
WARNING: This page is about a different variant/trim than selected.

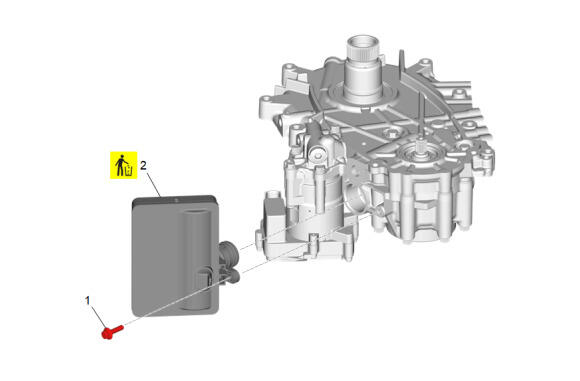

Automatic Transmission Fluid Filter Disassemble
| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Auxiliary Fluid Pump Bolt M5 x 20 |
| 2 | Automatic Transmission Fluid Filter Procedure Remove and DISCARD the filter. |
Drive Link, Drive Sprocket, and Driven Sprocket Disassemble
| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Fluid Baffle |
| 2 | Driven Sprocket Retaining Ring Procedure Remove and discard the retaining ring. |
| 3 | Drive Link |
| 4 | Driven Sprocket Procedure Remove the sprockets and chain at the same time. |
| 5 | Drive Sprocket |
| 6 | Drive Sprocket Thrust Washer |
| 7 | Torque Converter Fluid Seal Ring Procedure Remove and DISCARD the seal. |
Automatic Transmission Auxiliary Fluid Pump Disassemble
| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Auxiliary Fluid Pump Bolt [3x] M5 x 33 |
| 2 | Automatic Transmission Auxiliary Fluid Pump Bolt M5 x 50 |
| 3 | Automatic Transmission Auxiliary Fluid Pump |
| 4 | Automatic Transmission Auxiliary Fluid Pump Seal Procedure Remove and DISCARD the seal. |

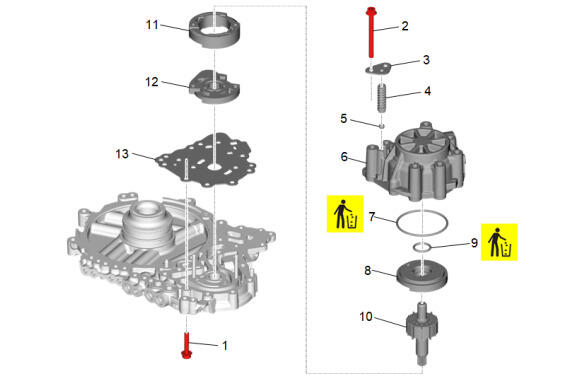

Automatic Transmission Fluid Pump Body Disassemble
| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Fluid Pump Cover Bolt [2x] M6 x 30 |
| 2 | Automatic Transmission Fluid Pump Cover Bolt [7x] M6 x 65 |
| 3 | Line Blowoff Ball Valve Spring Retainer |
| 4 | Line Blowoff Ball Valve Spring |
| 5 | Line Blowoff Ball Valve |
| 6 | Automatic Transmission Fluid Pump Body |
| 7 | Automatic Transmission Fluid Pump Pressure Plate Seal Procedure Remove and DISCARD the seal. |
| 8 | Automatic Transmission Fluid Pump Pressure Plate
NOTE:
The fluid pump pressure plate may be stuck in the fluid pump body. |
| 9 | Automatic Transmission Fluid Pump Pressure Plate Seal Procedure Remove and DISCARD the seal. |
| 10 | Automatic Transmission Fluid Pump Shaft |
| 11 | Automatic Transmission Fluid Pump Cam |
| 12 | Automatic Transmission Fluid Pump Thrust Plate |
| 13 | Auxiliary Control Valve Body Spacer Plate |
Forward Clutch Housing Fluid Seal Ring Disassemble
| Callout | Component Name |
|---|---|
| 1 | Forward Clutch Housing Fluid Seal Ring [2x] Procedure Remove and DISCARD the seal. |
| 2 | Forward Clutch Housing Fluid Seal Ring [2x] Procedure Remove and DISCARD the seal. |
