Transmission Fluid Cooler Pipe Fitting Seal Removal

WARNING: This page is about a different variant/trim than selected.

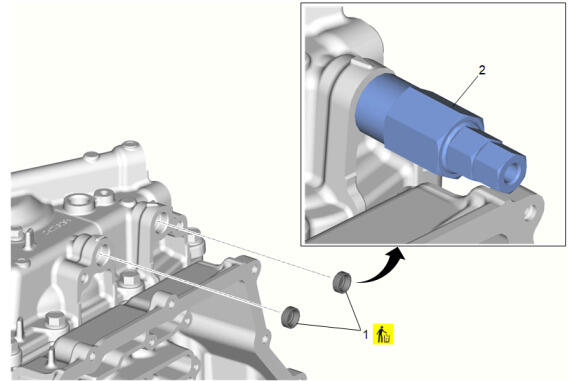

GM5021971Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Transmission Fluid Cooler Pipe Fitting Seal [2x]
Procedure
  1. Use J-45201  Cooler Line Seal Remover to remove the transmission fluid cooler pipe fitting seal.
  2. Remove and DISCARD the seal.

Special Tools
J-45201  Cooler Line Seal Remover
Equivalent regional tools: Special Tools
