Transmission Fluid Cooler Pipe Fitting Seal Installation

WARNING: This page is about a different variant/trim than selected.

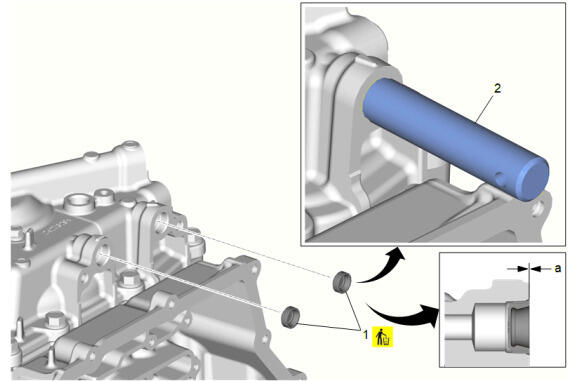

GM5021972Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Transmission Fluid Cooler Pipe Fitting Seal [2x]
Procedure
  1. Use DT-47770  Cooler Line Seal Installer to install the transmission fluid cooler pipe fitting seal. Install seal flush or up to 0.3 mm (a) below flush.
  2. Install a NEW seal. Do NOT reuse the old seal.

Special Tools
DT-47770  Cooler Line Seal Installer
Equivalent regional tools: Special Tools
