Torque Converter and Differential Housing Removal
WARNING: This page is about a different variant/trim than selected.

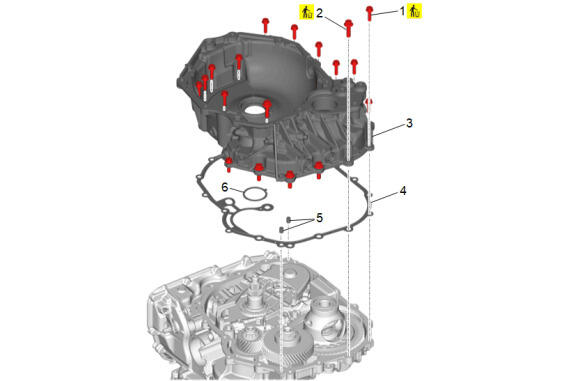

| Callout | Component Name |
|---|---|
| 1 | Torque Converter and Differential Housing Bolt [13x] M8 x 30 Procedure Remove and DISCARD the bolts. |
| 2 | Torque Converter and Differential Housing Bolt [5x] M10 x 35 Procedure Remove and DISCARD the bolts. |
| 3 | Torque Converter and Differential Housing |
| 4 | Torque Converter Housing Gasket
NOTE:
The torque converter housing gasket is reusable. Inspect the gasket to determine if it may be reused. If the gasket is stuck to the case or torque converter housing, it should be replaced. |
| 5 | Transmission Case Locating Pin [2x] |
| 6 | Drive Sprocket Thrust Washer |
