Reverse Clutch Plate and Reverse Clutch Piston Installation
WARNING: This page is about a different variant/trim than selected.

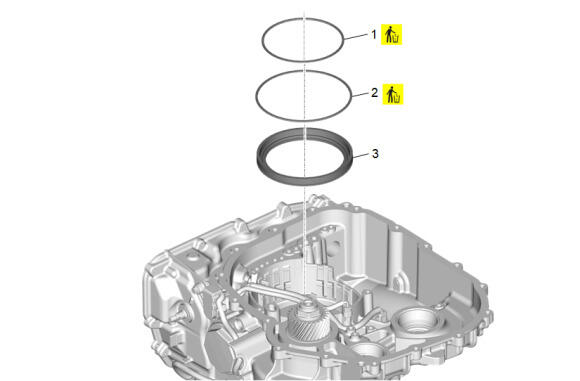

Reverse Clutch Piston Installation
| Callout | Component Name |
|---|---|
| 1 | Reverse Clutch Piston Inner Seal Procedure Install a NEW seal. Do NOT reuse the old seal. |
| 2 | Reverse Clutch Piston Outer Seal Procedure Install a NEW seal. Do NOT reuse the old seal. |
| 3 | Reverse Clutch Piston |

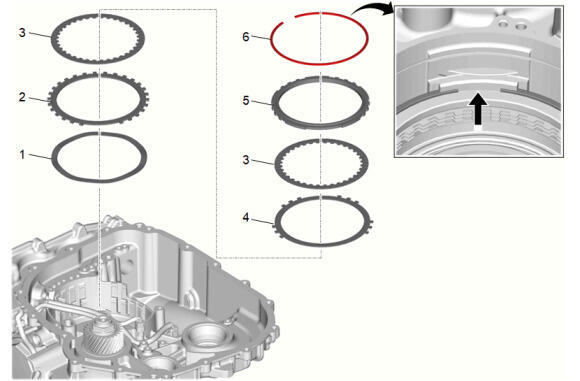

Reverse Clutch Plate Installation
| Callout | Component Name |
|---|---|
| 1 | Reverse Clutch Plate (Waved) |
| 2 | Reverse Clutch Apply Plate |
| 3 | Reverse Clutch Plate (Friction) [2x] |
| 4 | Reverse Clutch Plate |
| 5 | Reverse Clutch Backing Plate |
| 6 | Reverse Clutch Backing Plate Retaining Ring
NOTE:
Ensure the retaining ring is engaged fully under slotted covering. |
