Reverse Carrier Removal

WARNING: This page is about a different variant/trim than selected.

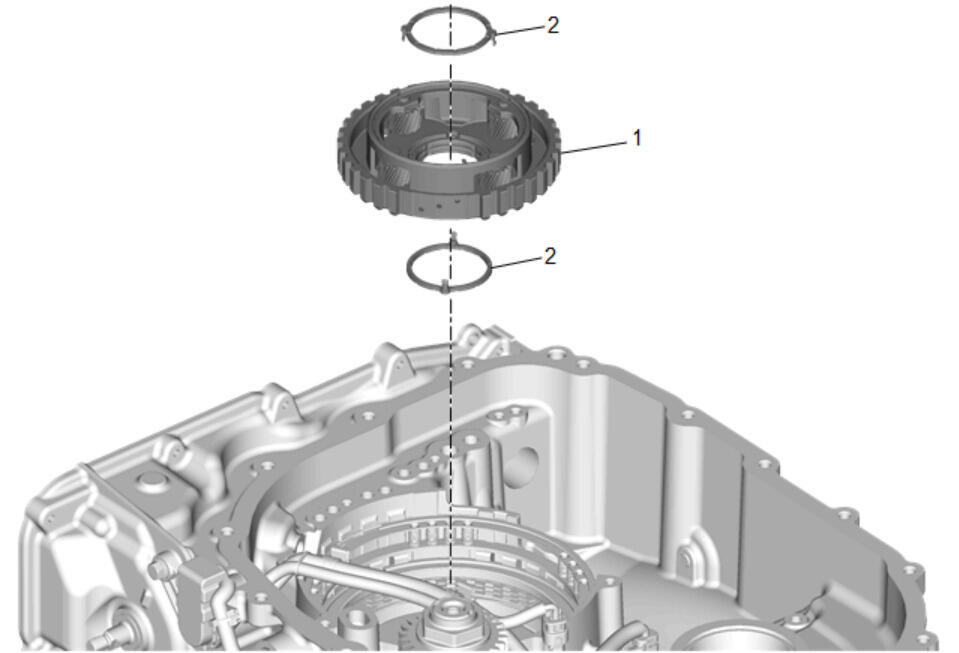

GM4658318Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Reverse Carrier
2 Reverse Carrier Thrust Washer [2x]
