Manual Shift Shaft Seal Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name

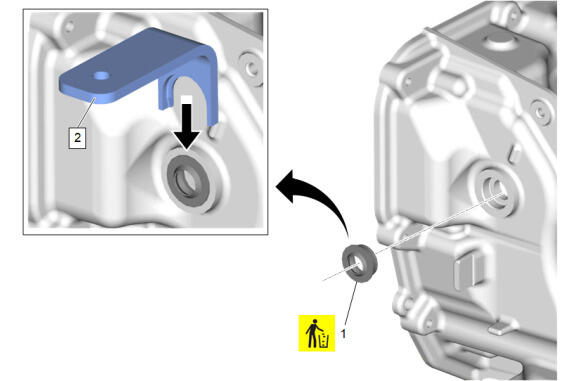

1	Manual Shift Shaft Seal CAUTION: Do not damage the case bore during removal of the manual shift shaft seal. Procedure Use the DT-52322 Seal Remover to remove the seal to prevent damage to the case surface. Remove and DISCARD the seal. Special Tools DT-52322 Seal Remover Equivalent regional tools: Special Tools

Callout

Component Name

Manual Shift Shaft Seal

CAUTION:

Do not damage the case bore during removal of the manual shift shaft seal.

Procedure

Use the DT-52322 Seal Remover to remove the seal to prevent damage to the case surface.
Remove and DISCARD the seal.

Special Tools
DT-52322 Seal Remover
Equivalent regional tools: Special Tools
