Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal

WARNING: This page is about a different variant/trim than selected.

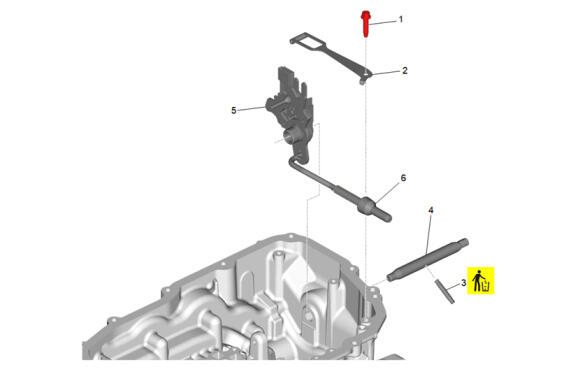

Fig 1: Exploded View Of Manual Shift Detent Lever With Manual Shift Detent Lever Spring And Park Pawl Actuator Components

Courtesy of GENERAL MOTORS COMPANY

Manual Shift Detent Lever with Manual Shift Detent Lever Spring and Park Pawl Actuator Removal

Callout	Component Name
1	Manual Shift Detent Spring Bolt M6 x 25.65 Procedure Remove and DISCARD the bolt.
2	Manual Shift Detent Lever Spring
3	Manual Shift Detent Lever Hub Pin Procedure Use a punch from the top to remove the pin. Remove and DISCARD, pin is not reusable.
4	Manual Shift Detent Lever Shaft
5	Manual Shift Detent Lever
6	Park Pawl Actuator
