Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation

WARNING: This page is about a different variant/trim than selected.

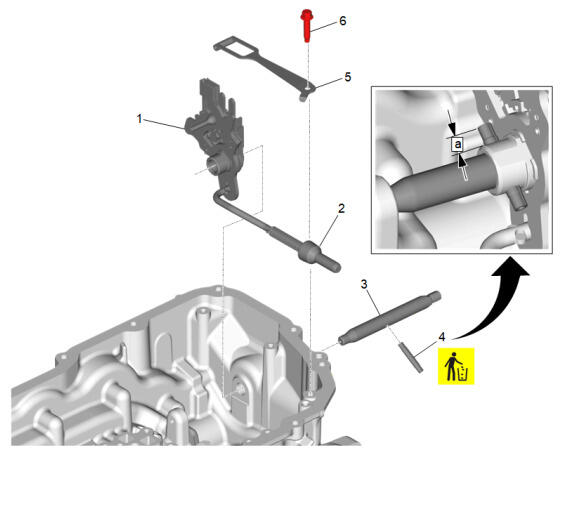

Fig 1: Exploded View Of Manual Shift Detent Lever With Manual Shift Detent Lever Spring And Park Pawl Actuator Components

Courtesy of GENERAL MOTORS COMPANY

Manual Shift Detent Lever with Manual Shift Detent Lever Spring and Park Pawl Actuator Installation

Callout	Component Name
1	Manual Shift Detent Lever
2	Park Pawl Actuator
3	Manual Shift Detent Lever Shaft Procedure Lubricate the shaft with ATF to prevent damage to the manual shift shaft seal during installation.
4	Manual Shift Detent Lever Hub Pin CAUTION: Refer to Fastener Caution . Procedure Install a NEW manual shift detent lever hub pin. Install the manual shift detent lever hub pin to correct height. Specification 7.9 mm (0.38 in) (a)
5	Manual Shift Detent Lever Spring
6	Manual Shift Detent Spring Bolt M6 x 25.65 Procedure Install NEW bolts. Do NOT reuse old bolts. Tighten 9 N.m (80 lb in)
