Front Wheel Drive Shaft Seal Installation - Case Side

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

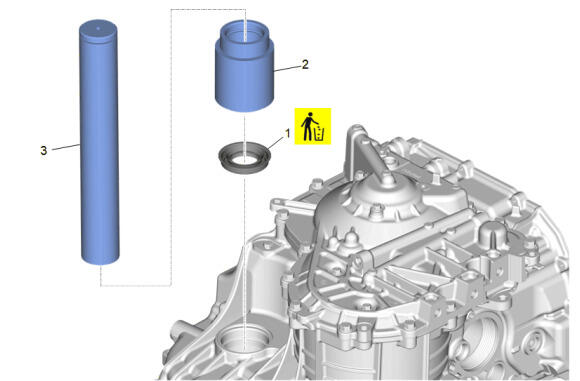

Callout	Component Name
1	Front Wheel Drive Shaft Oil Seal Procedure Install a NEW seal. Do NOT reuse the old seal. Special Tools DT-50896 Front Wheel Drive Shaft Oil Seal Installer J-22828 Tube Driver Equivalent regional tools: Special Tools
