Front Wheel Drive Shaft Oil Seal Removal - Torque Converter and Differential Housing Side

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

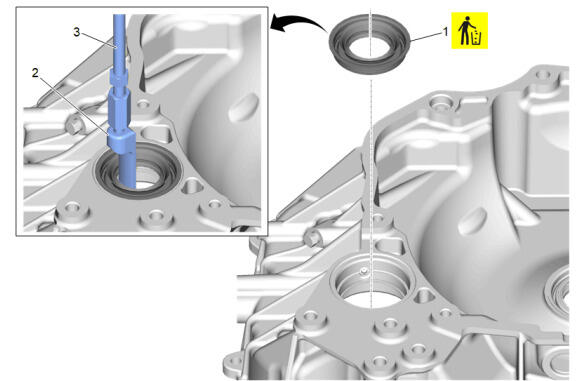

Callout	Component Name
1	Front Wheel Drive Shaft Oil Seal Procedure Remove and DISCARD the seal. Special Tools DT-23129 Universal Seal Remover GE-6125-1B Slide Hammer Equivalent regional tools: Special Tools
