Front Differential Drive Pinion Gear Bearing Overhaul
WARNING: This page is about a different variant/trim than selected.

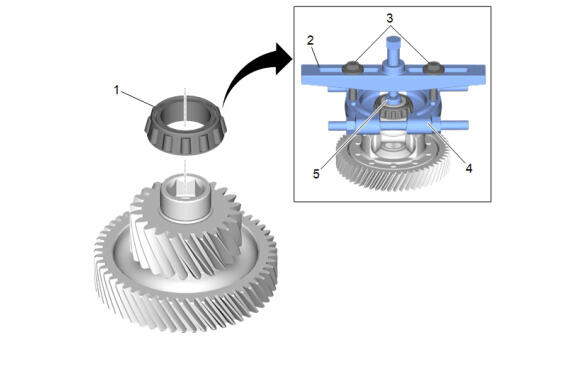

Front Differential Drive Pinion Gear Bearing Removal
| Callout | Component Name |
|---|---|
| 1 | Front Differential Drive Pinion Gear Bearing
NOTE:
Use two 3/8 x 24 x 3 inch bolts with J-8433 Puller Bar Special Tools
Equivalent regional tools: Special Tools |

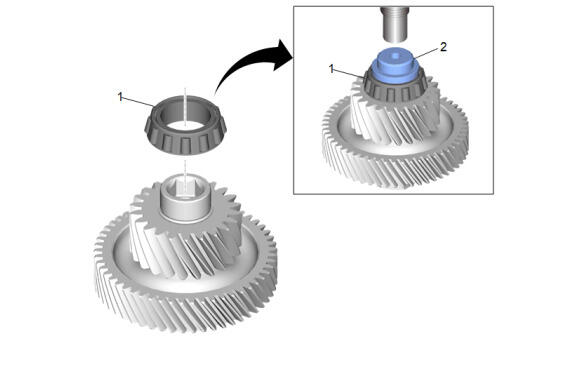

Front Differential Drive Pinion Gear Bearing Installation
| Callout | Component Name |
|---|---|
| 1 | Front Differential Carrier Bearing
NOTE:
Pressing against the bearing assembly can damage the bearing and cause premature bearing failure. Special Tools J-8107-4 Gear and Bearing Installer Equivalent regional tools: Special Tools |
