Section 14 (Automatic Transmission - VT40 (MRG) - Repair Instructions - Off Vehicle)
>>
Repair Instructions - Off Vehicle
>>
Front Differential Carrier Installation

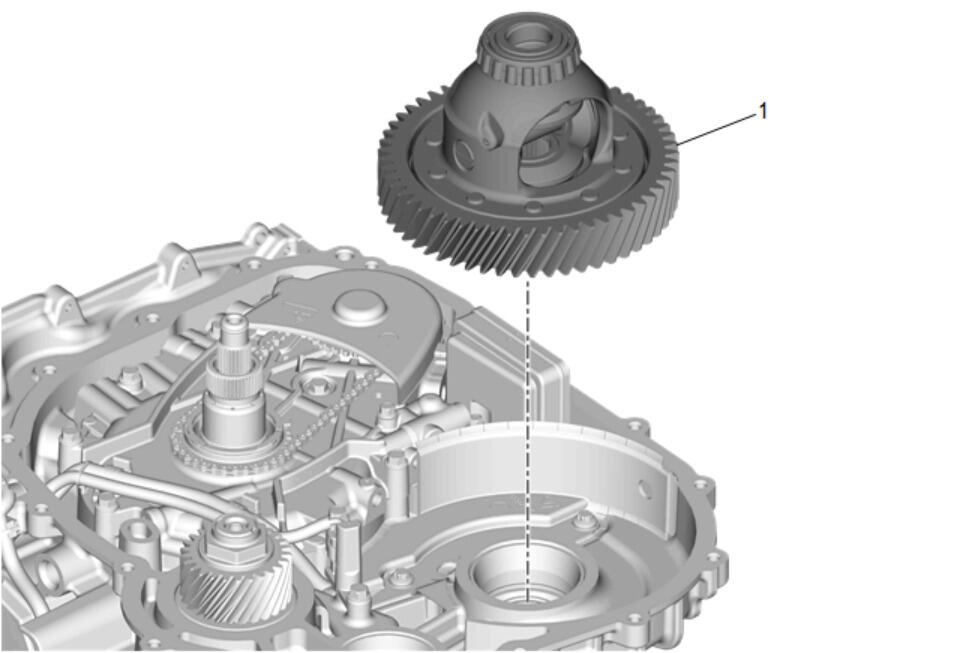

Front Differential Carrier Installation
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Front Differential Carrier
