Front Differential Carrier Bearing Cup Overhaul - Torque Converter and Differential Housing Side

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

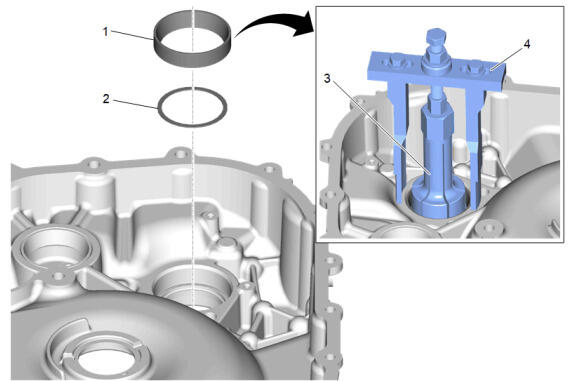

Front Differential Carrier Bearing Cup Removal

Callout	Component Name
Preliminary Procedure Do not install the bearing cup until after the selective shim measurement has been performed.
1	Front Differential Carrier Bearing Cup CAUTION: Failure to apply the lubricant will cause damage to the bolt and nut threads. Procedure Tighten DT-50712 Bearing Cup Remover until it fits snugly on the bearing cup. Adjust DT-45124 Removal Bridge so it sits on the torque converter housing surface just beyond the bearing cup opening. Apply the extreme pressure lubricant DT-23444-A Extreme Press Lubricant - 1/4 Ounce Tube to the puller bolt threads to prevent damage to the bolt threads during bearing cup removal. Hold the puller bridge bolt and turn the nut to removal the bearing cup. Special Tools DT-23444-A Extreme Press Lubricant - 1/4 Ounce Tube DT-50712 Bearing Cup Remover DT-45124 Removal Bridge Equivalent regional tools: Special Tools .
2	Front Differential Carrier Bearing Shim

Callout

Component Name

Preliminary Procedure
Do not install the bearing cup until after the selective shim measurement has been performed.

Front Differential Carrier Bearing Cup

CAUTION:

Failure to apply the lubricant will cause damage to the bolt and nut threads.

Procedure

Tighten DT-50712 Bearing Cup Remover until it fits snugly on the bearing cup.
Adjust DT-45124 Removal Bridge so it sits on the torque converter housing surface just beyond the bearing cup opening.
Apply the extreme pressure lubricant DT-23444-A Extreme Press Lubricant - 1/4 Ounce Tube to the puller bolt threads to prevent damage to the bolt threads during bearing cup removal.
Hold the puller bridge bolt and turn the nut to removal the bearing cup.

Special Tools

Equivalent regional tools: Special Tools .

Front Differential Carrier Bearing Shim

Courtesy of GENERAL MOTORS COMPANY

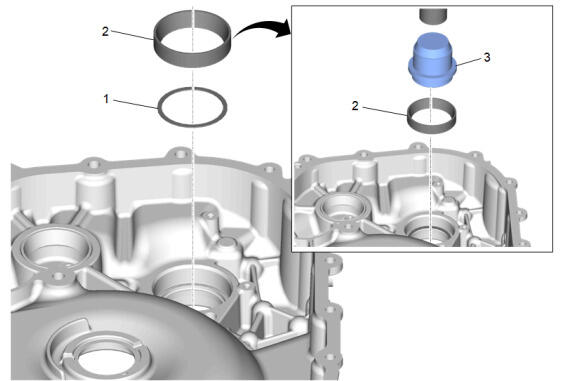

Front Differential Carrier Bearing Cup Installation

Callout	Component Name
Preliminary Procedure Do not install the bearing cup until after the selective shim measurement has been performed.
1	Front Differential Carrier Bearing Shim Procedure Install the correct drive pinion gear bearing shim as determined by the shim measurement procedure. Front Differential Drive Pinion Gear Bearing Shim and Front Differential Carrier Bearing Shim Measurement .
2	Front Differential Carrier Bearing Cup CAUTION: Support the back side of the torque converter housing before installing the bearing cup. Apply a light coating of transmission fluid to the bore before pressing the cup into position. Install the bearing cup until it stops moving. Applying excessive pressure to the bearing cup once it is seated could cause damage to the torque converter housing casting. CAUTION: An unseated or improperly installed bearing cup will result in premature bearing failure. Visually inspect the bearing cup to insure there is "no gap" between the case, thrust washer, and the bearing cup. Use of a feeler gauge may assist in identifying a bearing cup that is not fully seated. Special Tools J-44908 Bearing Cup Installer Equivalent regional tools: Special Tools .
