Forward Clutch Assembly Disassemble
WARNING: This page is about a different variant/trim than selected.

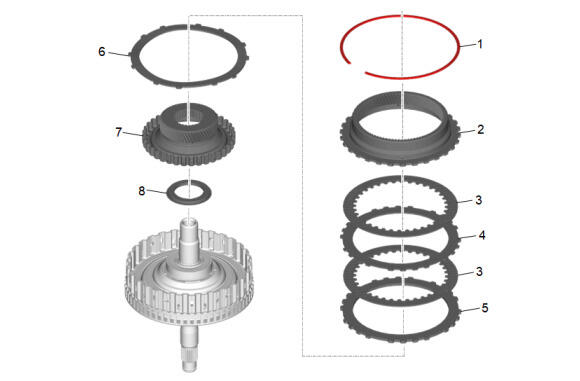

Forward Clutch Disassemble
| Callout | Component Name |
|---|---|
| 1 | Reverse Internal Gear Retaining Ring |
| 2 | Reverse Internal Gear |
| 3 | Forward Clutch Plate (Friction) [2x] |
| 4 | Forward Clutch Plate |
| 5 | Forward Clutch Apply Plate |
| 6 | Forward Clutch Plate (Waved) |
| 7 | Reverse Sun Gear |
| 8 | Reverse Sun Gear Thrust Bearing |

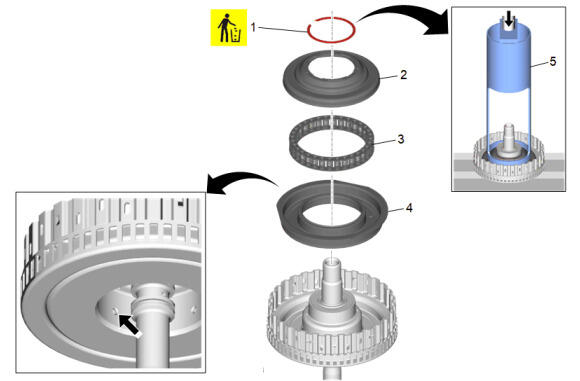

Forward Clutch Piston Disassemble
| Callout | Component Name |
|---|---|
| 1 | Forward Clutch Piston Dam Retaining Ring Procedure Install a NEW retaining ring, it is not reusable. Use DT-47693 Dam Spring Compressor and an arbor press to remove the retaining ring. Special Tools DT-47693 Dam Spring Compressor Equivalent regional tools: Special Tools |
| 2 | Forward Clutch Piston Dam |
| 3 | Forward Clutch Spring |
| 4 | Forward Clutch Piston Procedure Apply shop air to the forward clutch feed hole using a rubber tipped air gun to dislodge the clutch piston. |

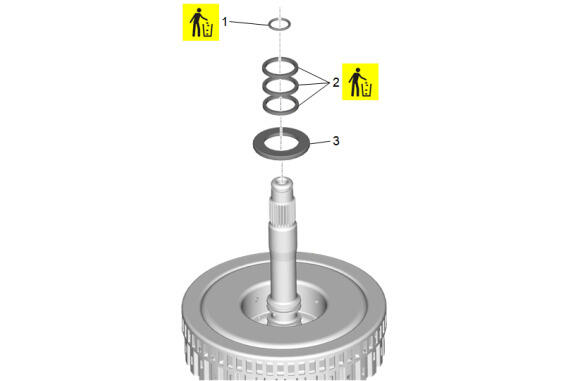

Turbine Shaft Fluid Seal Ring Disassemble
| Callout | Component Name |
|---|---|
| 1 | Turbine Shaft Seal Procedure Remove and DISCARD the seal. |
| 2 | Turbine Shaft Fluid Seal Ring [3x] Procedure Remove and DISCARD the seal. |
| 3 | Forward Clutch Housing Thrust Bearing |
