Forward Clutch Assembly Assemble
WARNING: This page is about a different variant/trim than selected.
Forward Clutch Piston Assemble
| Callout | Component Name |
|---|---|
| 1 | Forward Clutch Piston |
| 2 | Forward Clutch Spring |
| 3 | Forward Clutch Piston Dam |
| 4 | Forward Clutch Piston Dam Retaining Ring Procedure Install a NEW retaining ring, it is not reusable. Use DT-52321 Piston Dam Retaining Ring Installer and a downward pressure by hand to install the retaining ring. Special Tools DT-52321 Piston Dam Retaining Ring Installer Equivalent regional tools: Special Tools |

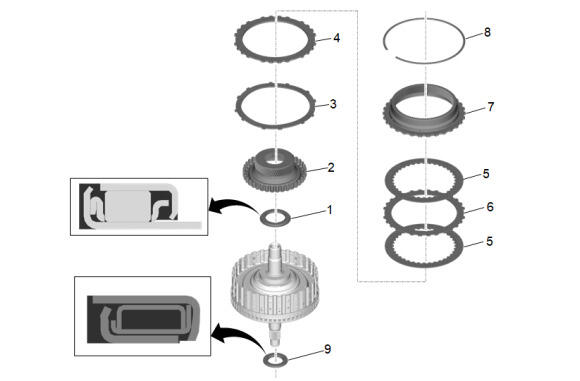

Forward Clutch Assemble
| Callout | Component Name |
|---|---|
| 1 | Forward Clutch Piston |
| 2 | Forward Clutch Spring |
| 3 | Forward Clutch Piston Dam |
| 4 | Forward Clutch Piston Dam Retaining Ring |
| 5 | Reverse Sun Gear Thrust Bearing |
| 6 | Reverse Sun Gear |
| 7 | Forward Clutch Plate (Waved) |
| 8 | Forward Clutch Apply Plate |
| 9 | Forward Clutch Plate (Friction) [2x] |
| 10 | Forward Clutch Plate |
| 11 | Reverse Internal Gear |
| 12 | Reverse Internal Gear Retaining Ring |
| 13 | Forward Clutch Housing Thrust Bearing |
Turbine Shaft Fluid Seal Ring Assemble
| Callout | Component Name |
|---|---|
| 1 | Turbine Shaft Fluid Seal Ring [3x]
CAUTION:
Do not use old seal rings. Install NEW seal rings. Reusing old seal rings may cause internal transmission leaks and transmission damage.
CAUTION:
Size the fluid seal rings for at least 5 minutes after installation to obtain proper seal ring size. Failure to do so may cause internal transmission leaks and transmission damage. Procedure Install NEW seals. Do NOT reuse old seals. Special Tools DT-52314 Turbine Shaft Seal Installer Equivalent regional tools: Special Tools |
| 2 | Turbine Shaft Seal Procedure Install NEW seals. Do NOT reuse old seals. |
