Control Valve Body Cover Removal

WARNING: This page is about a different variant/trim than selected.

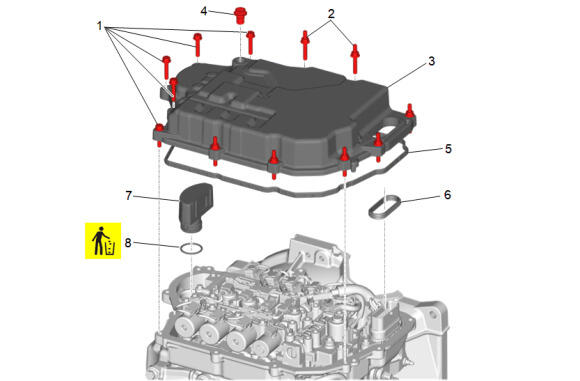

Fig 1: Exploded View Of Control Valve Body Cover Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Control Valve Body Cover Bolt [4x] M6 x 30 Procedure Rotate transmission with pan facing upwards. Remove the bolts completely.
2	Control Valve Body Cover Stud [8x] M6 x 1
3	Control Valve Body Cover
4	Automatic Transmission Fluid Level Hole Plug
5	Control Valve Body Cover Seal NOTE: The control valve body cover seal is reusable. Inspect the seal to determine if it may be reused.
6	Control Valve Body Cover Wiring Connector Hole Seal Procedure Remove and DISCARD the seal.
7	Automatic Transmission Fluid Level Control Valve
8	Automatic Transmission Fluid Level Control Valve Seal Procedure Remove and DISCARD the seal.
