Control Valve Body Cover Installation
WARNING: This page is about a different variant/trim than selected.

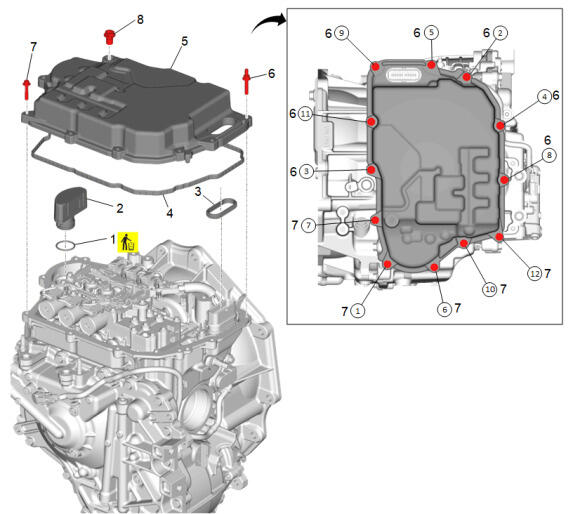

| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Fluid Level Control Valve Seal Procedure Install a NEW seal. Do NOT reuse the old seal. |
| 2 | Automatic Transmission Fluid Level Control Valve |
| 3 | Control Valve Body Cover Wiring Connector Hole Seal Procedure Install a NEW seal. Do NOT reuse the old seal. |
| 4 | Control Valve Body Cover Seal
NOTE:
The control valve body cover seal is reusable. Inspect the seal to determine if it may be used. |
| 5 | Control Valve Body Cover |
| 6 | Control Valve Body Cover Stud [8x] M6 x 1
CAUTION:
Refer to Fastener Caution . Tighten in sequence 9 N.m (80 lb in) |
| 7 | Control Valve Body Cover Bolt [4x] M6 x 30 Tighten in sequence 9 N.m (80 lb in) |
| 8 | Automatic Transmission Fluid Level Hole Plug M12 x 1.25 Tighten 2 N.m (18 lb in) |
