Control Valve Body Assemble
WARNING: This page is about a different variant/trim than selected.

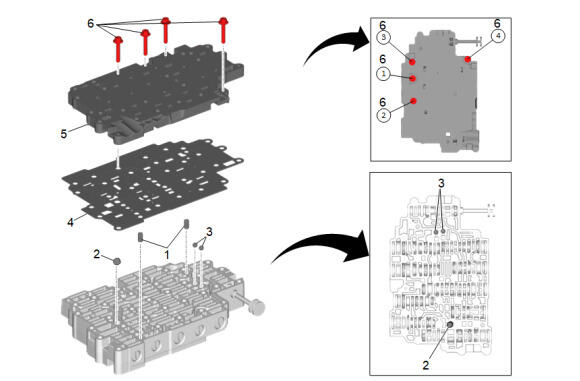

Fig 1: Exploded View Of Control Valve Body/Channel Plate Components And Bolts With Tightening Sequence
Control Valve Channel Plate Assemble
| Callout | Component Name |
|---|---|
| 1 | Control Valve Body Locating Pin [2x] |
| 2 | Control Valve Body Ball Check Valve |
| 3 | Control Valve Body Ball Check Valve [2x] |
| 4 | Control Valve Body Spacer Plate |
| 5 | Valve Control Valve Channel Plate |
| 6 | Valve Body Bolt [4x] M5 x 30
CAUTION:
Refer to Fastener Caution . Tighten 8 N.m (71 lb in) |

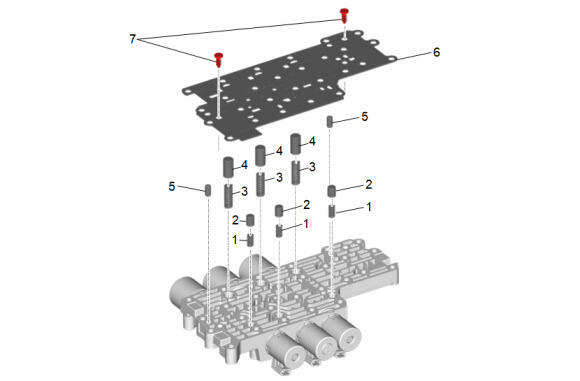

Control Valve Body Spacer Plate Assemble
| Callout | Component Name |
|---|---|
| 1 | Variable Feed Solenoid Clutch Accumulator Piston Spring [3x] |
| 2 | Variable Feed Solenoid Clutch Accumulator Piston [3x] |
| 3 | Variable Feed Solenoid Clutch Accumulator Piston Spring [3x] |
| 4 | Variable Feed Solenoid Clutch Accumulator Piston [3x] |
| 5 | Control Valve Body Locating Pin [2x] |
| 6 | Control Valve Body Spacer Plate |
| 7 | Control Valve Body Spacer Plate Retainer [2x] |
