Automatic Transmission Output Speed Sensor Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

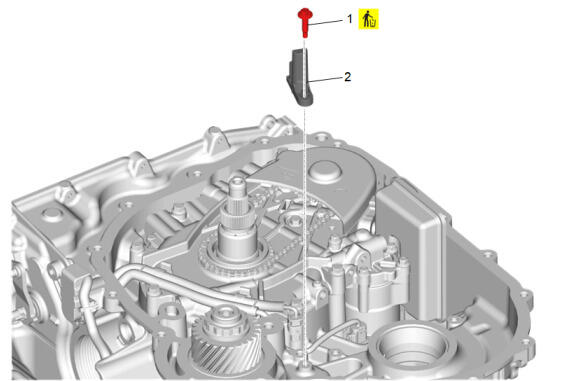

Callout	Component Name
1	Automatic Transmission Speed Sensor Bolt M6 x 25 CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. Procedure Remove and DISCARD the bolt. Special Tools DT-48285 Torque Socket Equivalent regional tools: Special Tools
2	Automatic Transmission Output Speed Sensor Procedure Disconnect the wiring harness connector as shown. Slide connector lock indicated by the small arrow down to unlock. Press on the tab indicated by the large arrow and pull connector out. Remove the automatic transmission output speed sensor.

Callout

Component Name

Automatic Transmission Speed Sensor Bolt M6 x 25

CAUTION:

This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

Procedure
Remove and DISCARD the bolt.
Special Tools
DT-48285 Torque Socket
Equivalent regional tools: Special Tools

Automatic Transmission Output Speed Sensor

Procedure

Disconnect the wiring harness connector as shown.
Slide connector lock indicated by the small arrow down to unlock.
Press on the tab indicated by the large arrow and pull connector out.
Remove the automatic transmission output speed sensor.
