Automatic Transmission Intermediate Speed Sensor Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

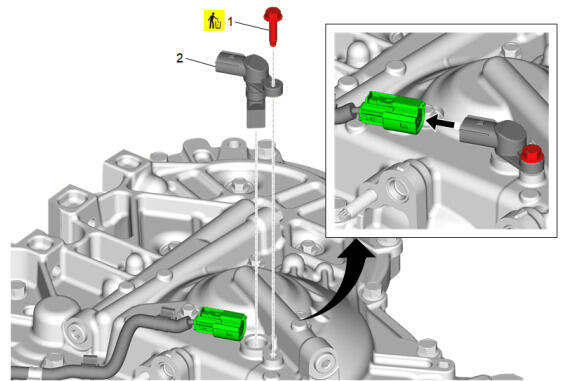

Callout	Component Name
1	Automatic Transmission Speed Sensor Bolt M6 x 25 CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. Procedure Remove and DISCARD the bolt. Special Tool DT-48285 Torque Socket Equivalent regional tools: Special Tools
2	Automatic Transmission Intermediate Speed Sensor Procedure Disconnect the intermediate speed sensor connector. Remove the intermediate speed sensor.

Callout

Component Name

Automatic Transmission Speed Sensor Bolt M6 x 25

CAUTION:

This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

Procedure
Remove and DISCARD the bolt.
Special Tool
DT-48285 Torque Socket
Equivalent regional tools: Special Tools

Automatic Transmission Intermediate Speed Sensor

Procedure

Disconnect the intermediate speed sensor connector.
Remove the intermediate speed sensor.
