Automatic Transmission Fluid Pump Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

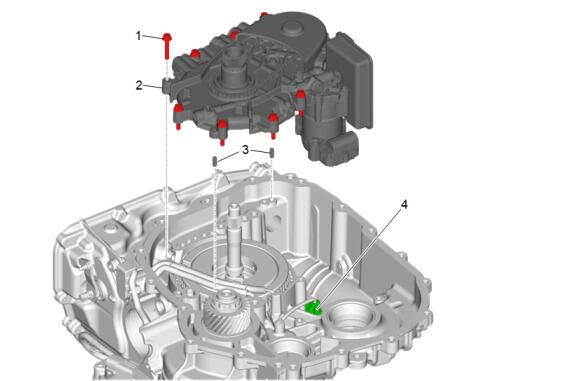

Callout	Component Name
1	Stator Shaft Support Bolt [8x] M6 x 35
2	Automatic Transmission Fluid Pump NOTE: The forward clutch may come out with automatic transmission fluid pump. Procedure Disconnect the wiring harness connector as shown. Slide connector lock indicated by the small arrow up to unlock. Press on the tab indicated by the large arrow and pull connector out. Remove the automatic transmission fluid pump.
3	Automatic Transmission Fluid Pump Locating Pin [2x]

Callout

Component Name

Stator Shaft Support Bolt [8x] M6 x 35

Automatic Transmission Fluid Pump

NOTE:

The forward clutch may come out with automatic transmission fluid pump.

Procedure

Automatic Transmission Fluid Pump Locating Pin [2x]
