Automatic Transmission Fluid Pump Installation

WARNING: This page is about a different variant/trim than selected.

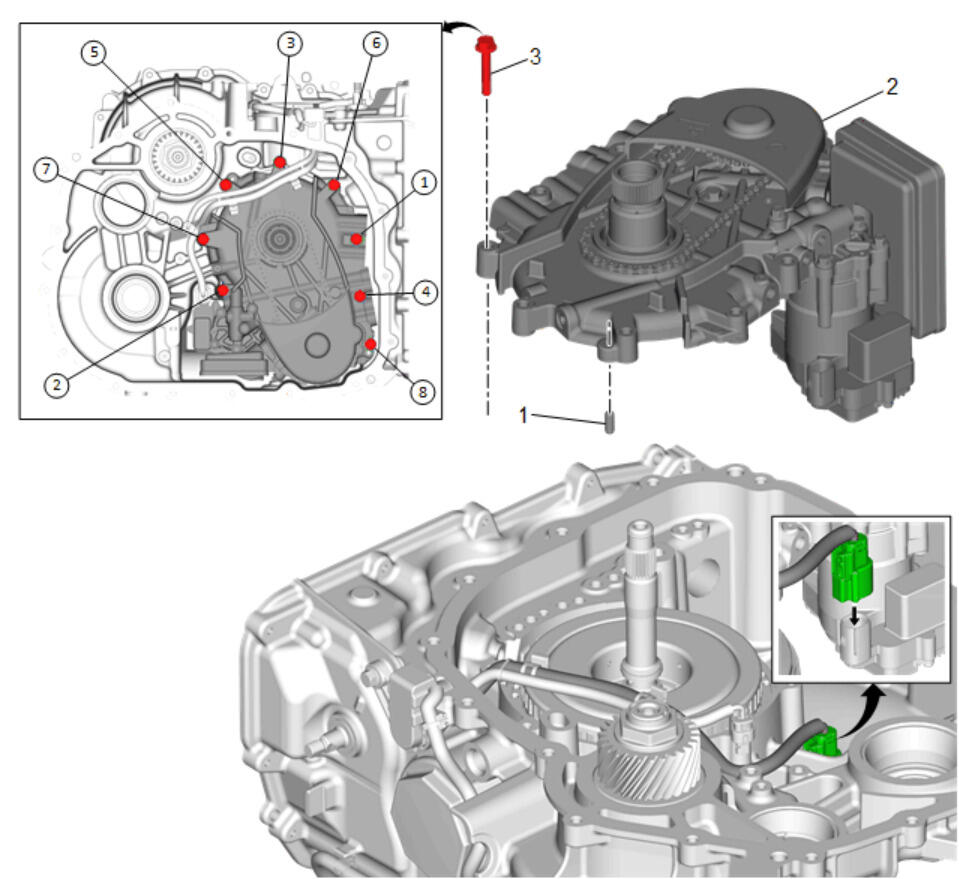

Fig 1: Identifying Automatic Transmission Fluid Pump Components And Bolts With Tightening Sequence
GM4693033Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Automatic Transmission Fluid Pump Locating Pin [2x]
2 Automatic Transmission Fluid Pump
Procedure
  1. Install the automatic transmission fluid pump
  2. Connect the automatic transmission fluid pump connector.
3 Stator Shaft Support Bolt [8x] M6 x 35
CAUTION:

Refer to Fastener Caution .


Tighten in sequence
12 N.m (106 lb in)
