Water Pump Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Water Pump Housing Gasket (3) - Install NEW
Water Pump Housing Gasket (2, 5) - Install NEW [3x]

NOTE:

Check that the pins (1, 6) sit correct in their hole.

Water Pump (4) - Install

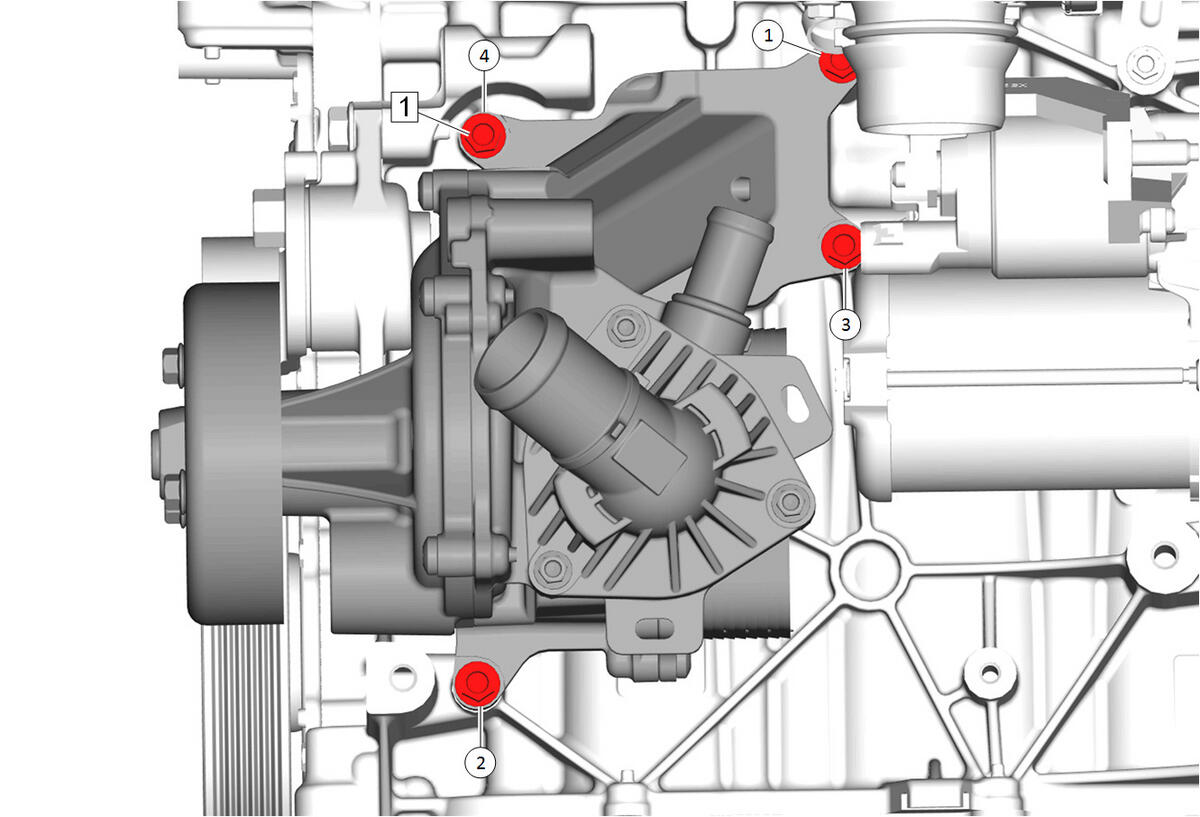

Fig 1: Identifying Water Pump Housing Bolts With Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

Water Pump Housing Bolt (1) - Install and hand tighten [4x]

CAUTION:

Fastener Caution

Water Pump Housing Bolt (1) - Tighten in sequence [4x] 15 N.m (11 lb ft)
