Evaporative Emission Canister Purge Tube Installation

WARNING: This page is about a different variant/trim than selected.

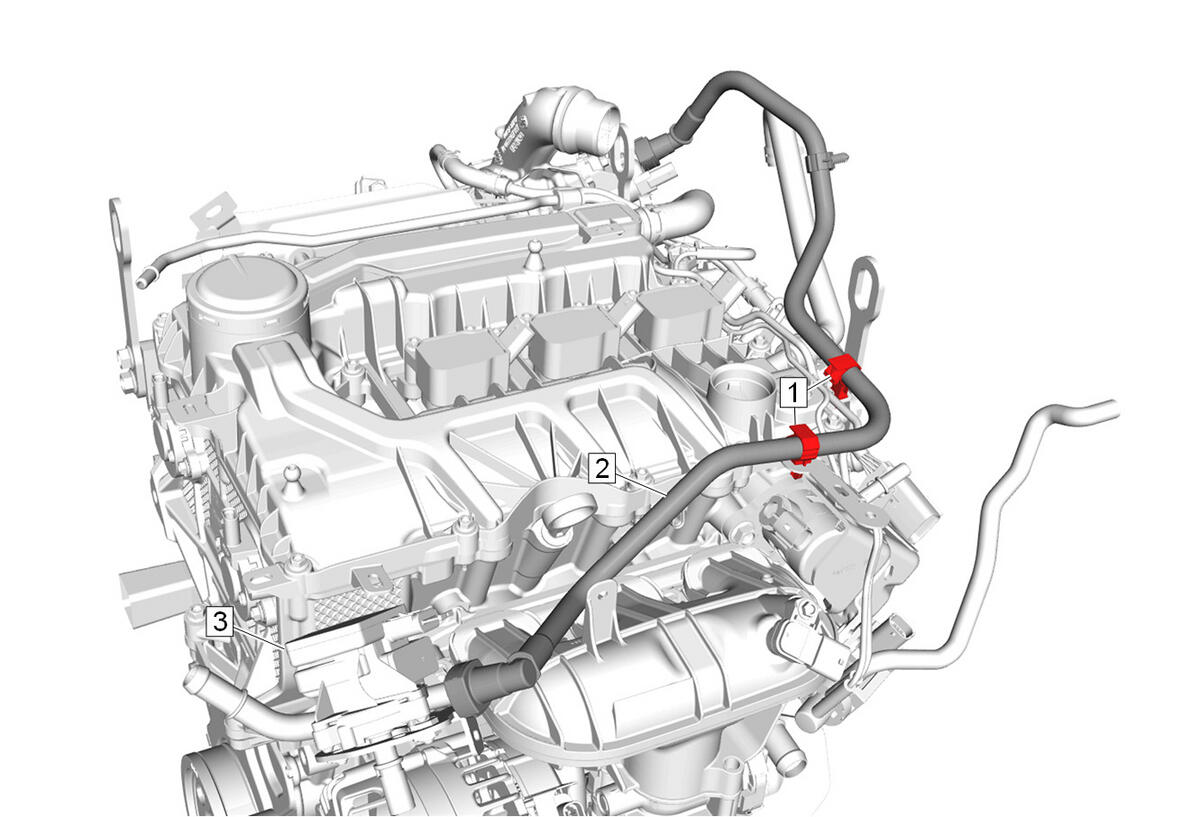

  1. GM5366848Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Tube (2) @ Intake Manifold - Connect

  2. Evaporative Emission Canister Purge Tube (2) @ Evaporative Emission Canister Purge Pump (3) - Connect
  3. Clip (1) - Install [2x]
