Camshaft Inspection Procedure
WARNING: This page is about a different variant/trim than selected.

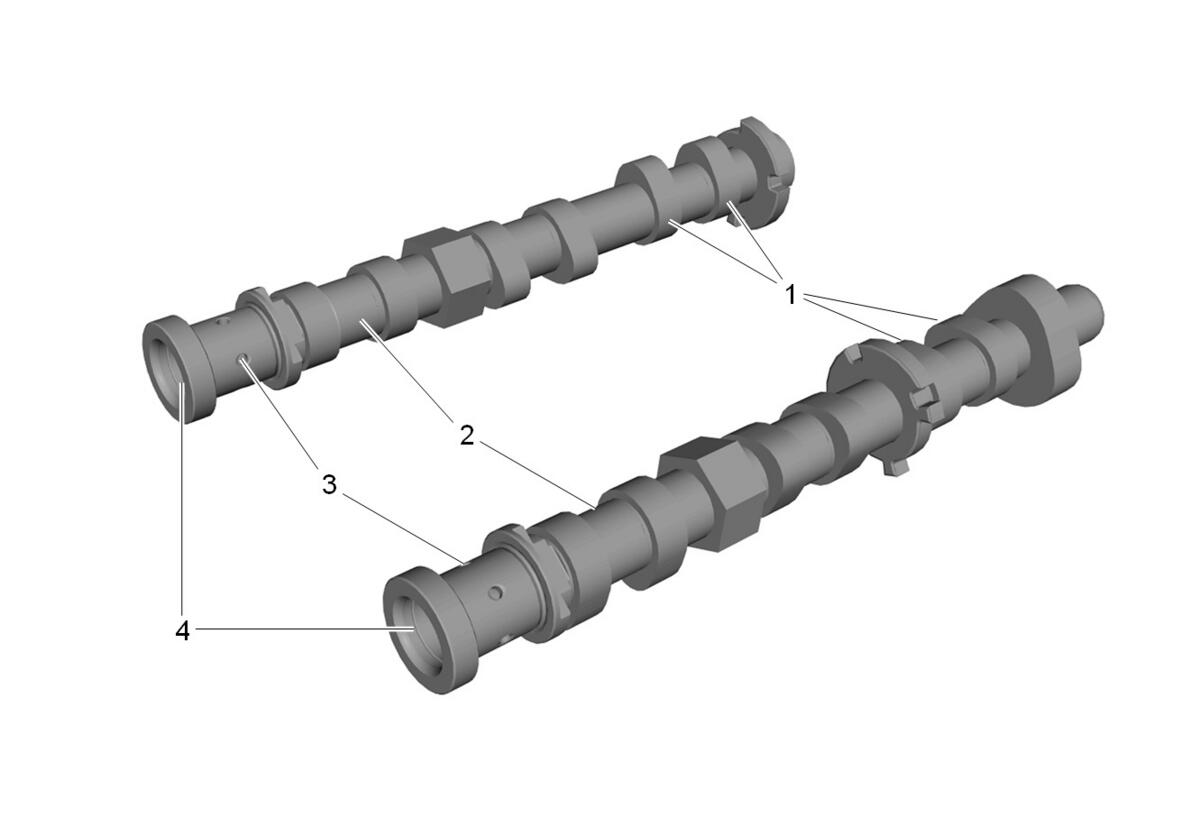

Inspect the camshaft oil feed holes (3) for dirt, debris or blockage.
- Inspect the threaded holes (4) for damage.
- Inspect the camshaft lobes (1) and journals (2) for the following conditions:
- Excessive scoring or pitting
- Discoloration from overheating
- Deformation from excessive wear, especially the camshaft lobes
- If any of the conditions above exist on the camshaft, replace the camshaft.
