Camshaft Position Actuator Intake Magnet Replacement

Courtesy of GENERAL MOTORS COMPANY

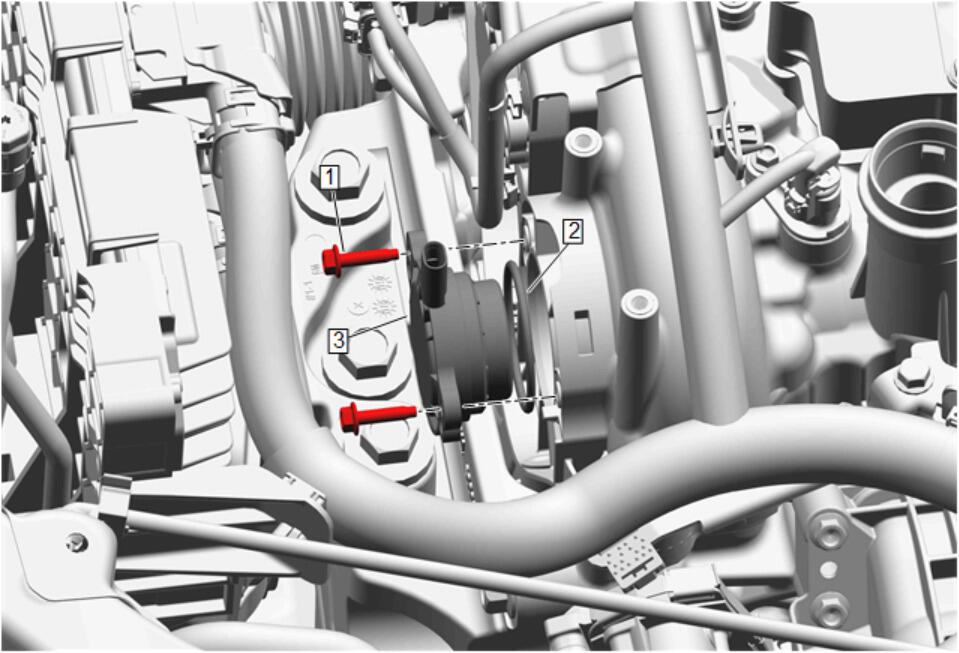

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement
1	Camshaft Position Actuator Intake Magnet Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Camshaft Position Actuator Intake Magnet Seal Procedure DISCARD and install NEW. Apply a small amount lubricant to the camshaft position actuator intake magnet seal ONLY. Adhesives, Fluids, Lubricants, and Sealers
3	Camshaft Position Actuator Intake Magnet Procedure Disconnect the camshaft position actuator intake magnet electrical connector.
