Air Cleaner Outlet Duct Replacement

Courtesy of GENERAL MOTORS COMPANY

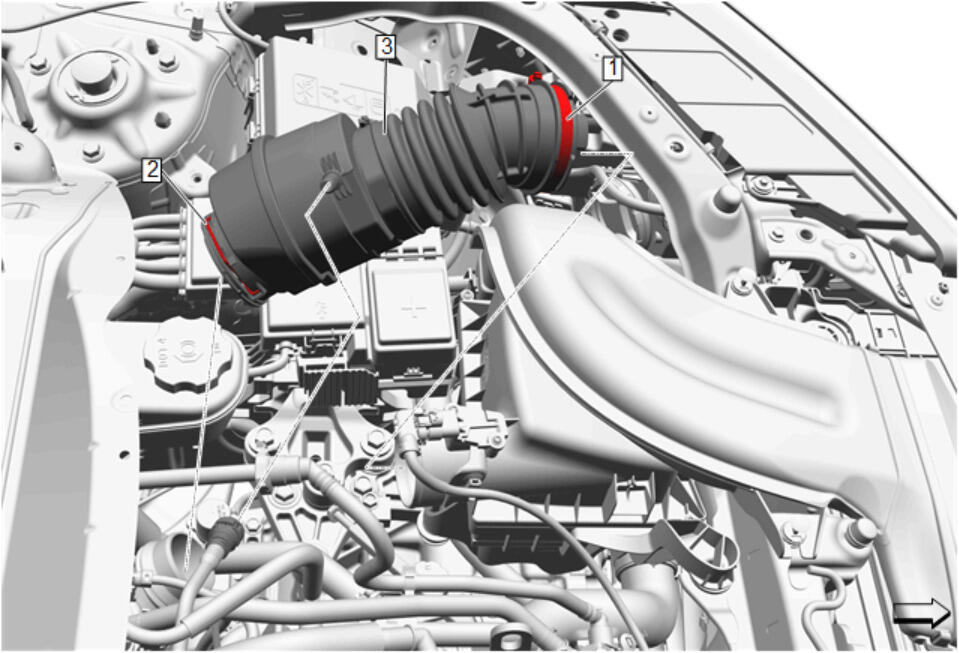

Callout	Component Name
Preliminary Procedures Battery Replacement Positive Crankcase Ventilation Tube @ Air Cleaner Outlet Duct - Disconnect - Positive Crankcase Ventilation Tube Replacement (Air Cleaner Outer Intermediate Duct to Camshaft Cover) , or Positive Crankcase Ventilation Tube Replacement (Compressor Air Intake Turbocharger to Camshaft Cover)
1	Air Cleaner Outlet Duct Clamp CAUTION: Fastener Caution NOTE: Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under. Tighten 3 N.m (27 lb in)
2	Air Cleaner Outlet Duct Retainer Spring
3	Air Cleaner Outlet Duct
