Engine Coolant Flow Control Valve Removal

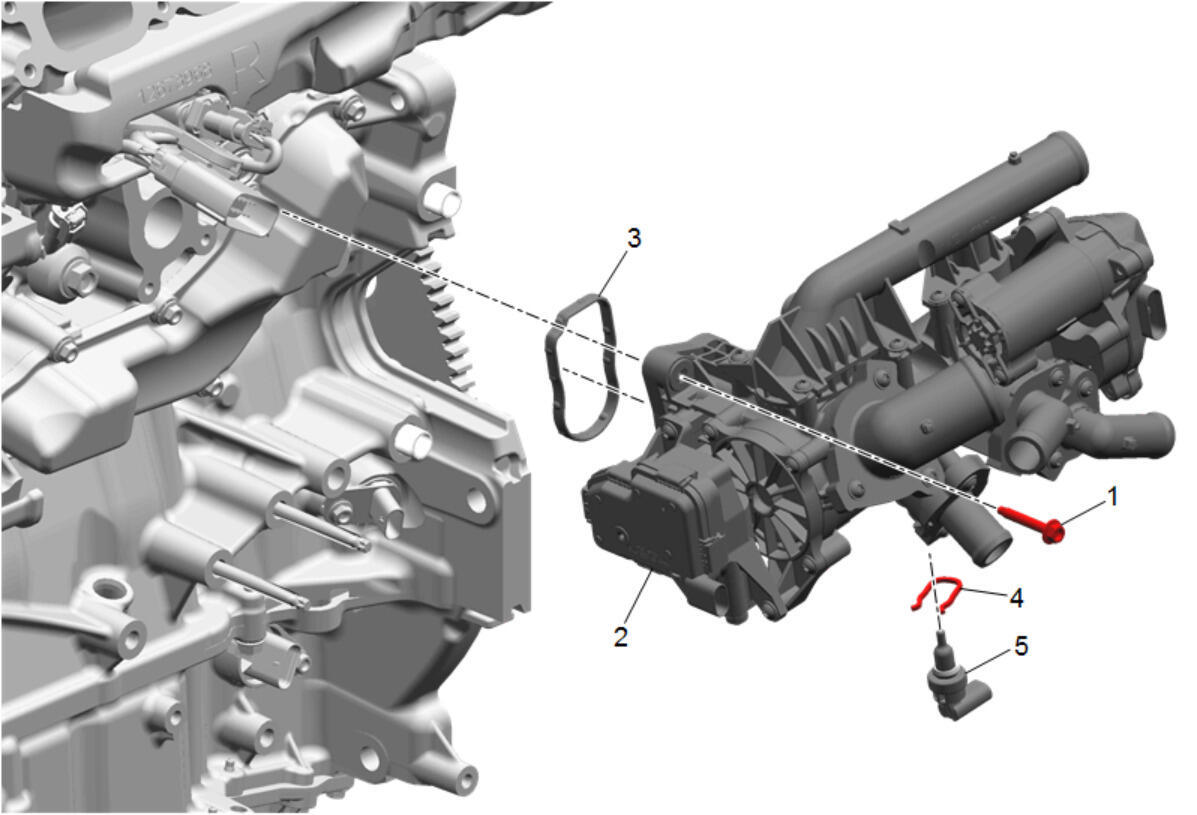

Engine Coolant Flow Control Valve Removal
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Engine Coolant Flow Control Valve Bolt [5x]
2
Engine Coolant Flow Control Valve
3
Engine Coolant Flow Control Valve Seal
Procedure
Remove and DISCARD the seal.
4
Engine Coolant Temperature Sensor Retainer
5
Engine Coolant Temperature Sensor
