Engine Coolant Temperature Sensor Replacement - Engine Coolant Flow Control Valve (L3T)

Courtesy of GENERAL MOTORS COMPANY

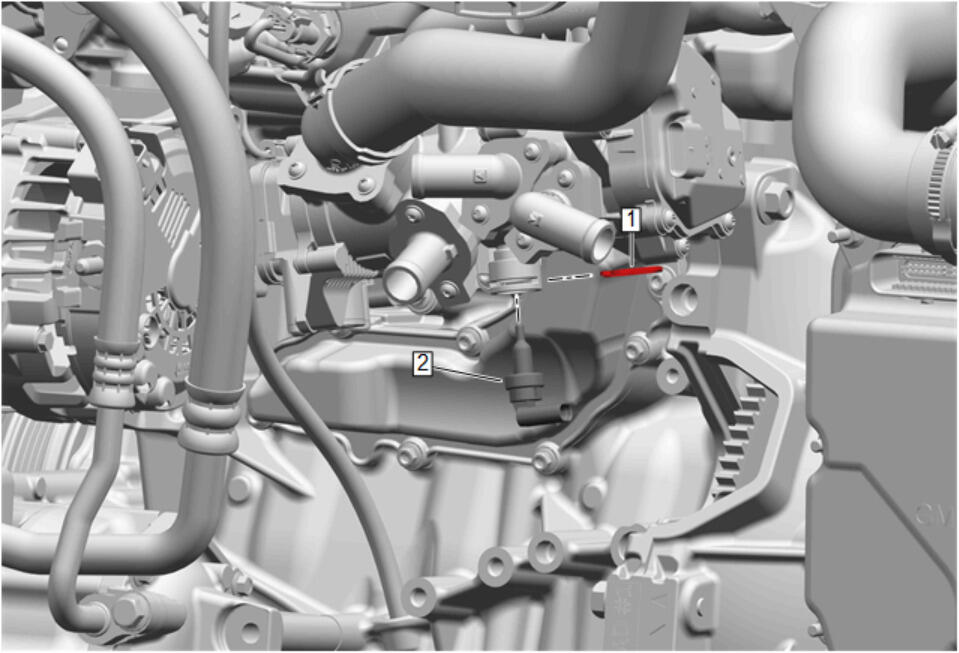

Callout	Component Name
Preliminary Procedures Drain the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static) Radiator Replacement Disconnect the electrical connector.
1	Engine Coolant Temperature Sensor Retainer
2	Engine Coolant Temperature Sensor Fill the coolant to the proper level. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static) Inspect for coolant leaks.

Callout

Component Name

Preliminary Procedures

Engine Coolant Temperature Sensor Retainer

Engine Coolant Temperature Sensor
Fill the coolant to the proper level. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Inspect for coolant leaks.
