Engine Coolant Temperature Sensor Replacement (LIH)

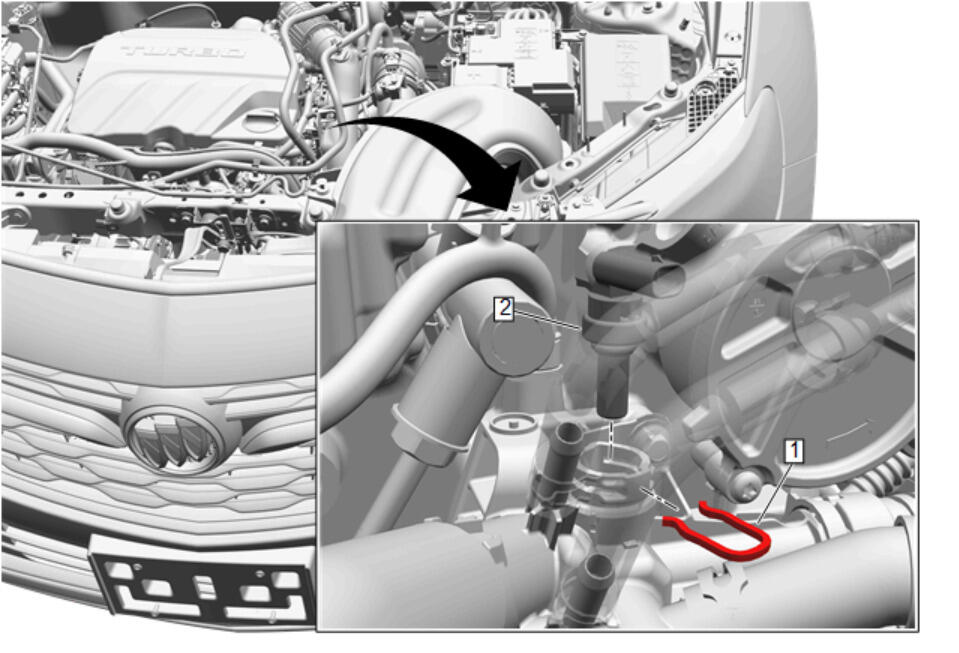

GM5392530Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Temperature Sensor Replacement

Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
  2. Air Cleaner Outlet Rear Duct - Remove - Air Cleaner Outlet Rear Duct Replacement
  3. Turbocharger Coolant Return Hose-Water Outlet to Engine Coolant Air Bleed Hose - Turbocharger Coolant Return Hose Replacement (LIH_Water Outlet to Engine Coolant Air Bleed Hose)
  4. Turbocharger Coolant Return Hose-Water Outlet to Turbocharger Coolant Return Pipe - Turbocharger Coolant Return Hose Replacement (LIH_Water Outlet to Turbocharger Coolant Return Pipe)
  5. Disconnect the electrical connector from the engine coolant temperature sensor.
1 Engine Coolant Temperature Sensor Retainer Clamp
2 Engine Coolant Temperature Sensor

Procedure

  1. Fill the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
  2. Check the cooling system for leaks. Cooling System Leak Testing
