Front Headlamp Replacement

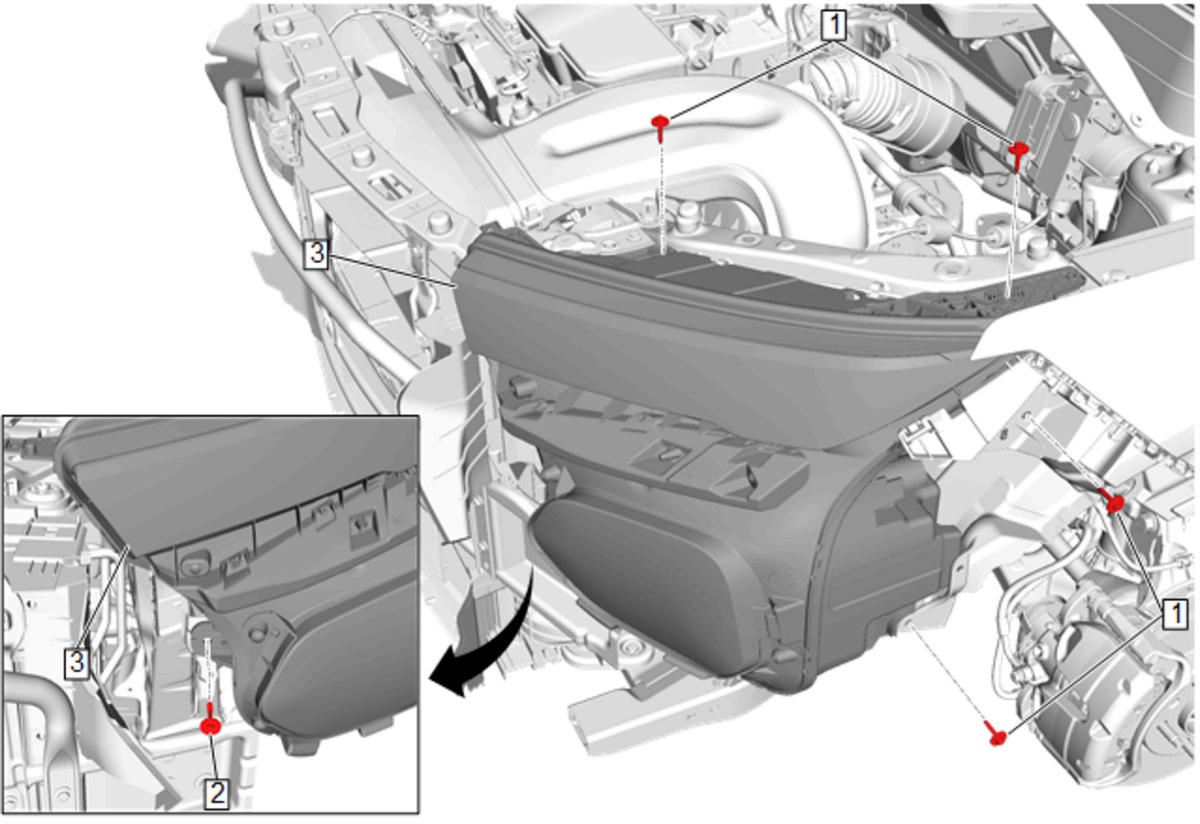

GM5319606Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Replacement
1 Headlamp Bolt [4x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Headlamp Bolt
Tighten
2.5 N.m (22 lb in)
3 Headlamp

Procedure

  1. Disconnect the electrical connector.
  2. Perform the headlamp aiming procedure. Front Headlamp Aiming
