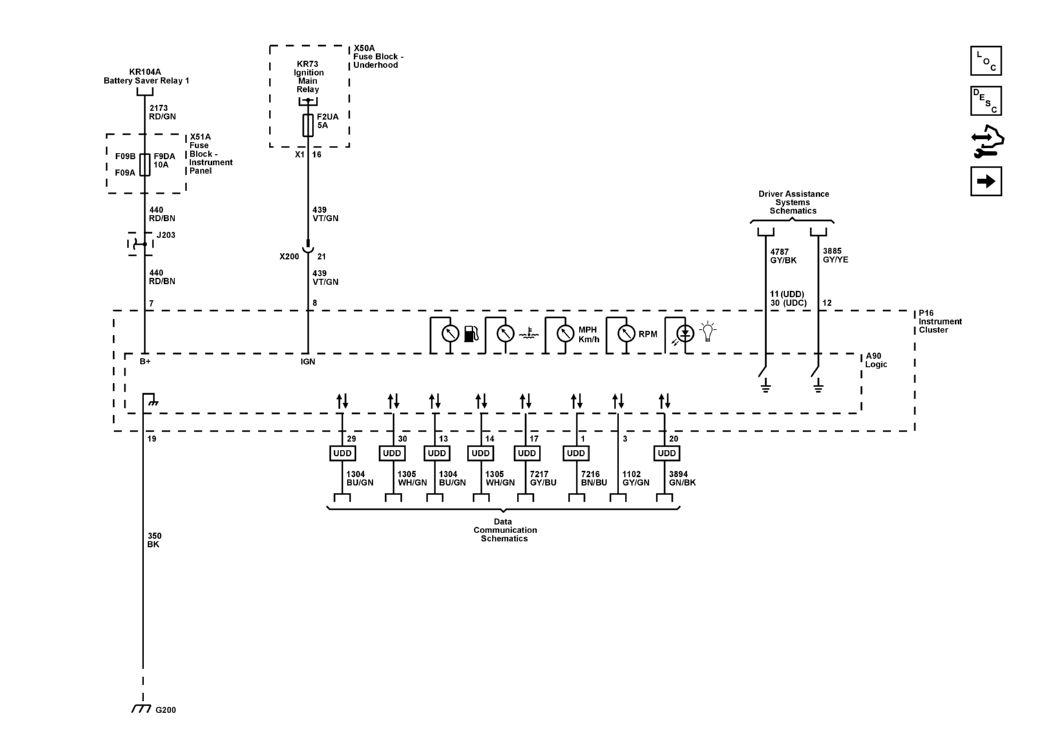

Home >> Chevrolet >> 2021 >> Trailblazer L >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Power, Ground, Serial Data
