Installation Procedure

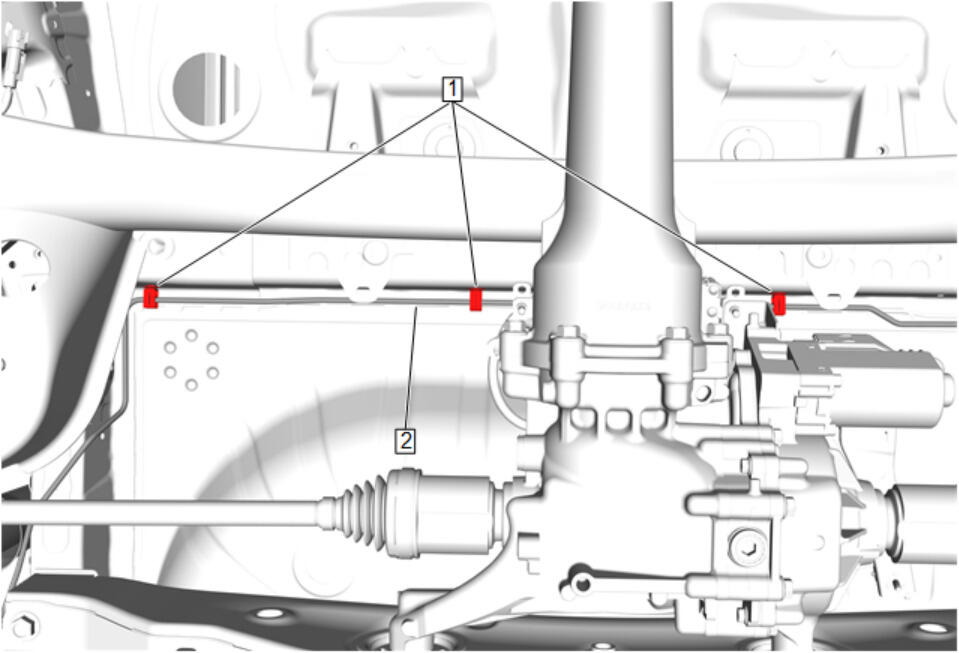

Rear Brake Pipe (2) @ Vehicle - Install
- Brake Pipe Clip (1) - Secure [3x]

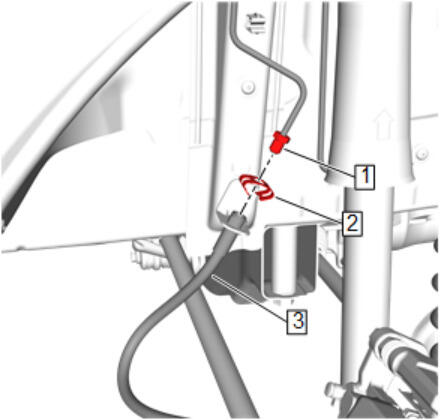

Rear Brake Hose Retainer (2) - Install
- Rear Brake Pipe Fitting (1) @ Rear Brake Hose (3) - Install and tighten 18 N.m (13 lb ft)

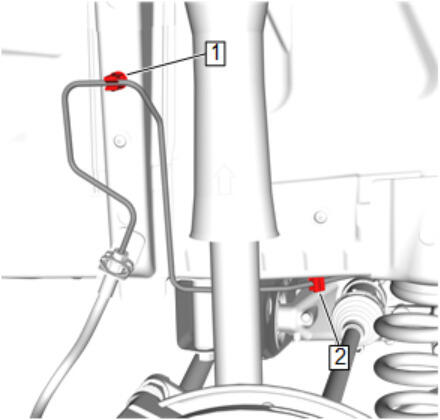

Brake Pipe Clip Clip (2) - Secure
- Brake Pipe Clip (1) - Secure
- Remove the cap from the brake pipe union.

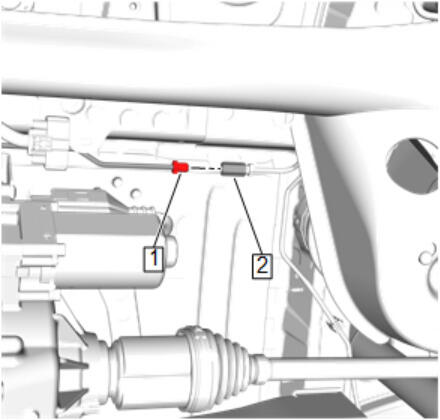

Rear Brake Pipe Fitting (1) @ Brake Pipe Union (2) - Install and tighten 18 N.m (13 lb ft)
- Rear Wheelhouse Liner - Install - Rear Wheelhouse Liner Replacement
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Bleed the brake system. Hydraulic Brake System Bleeding (Pressure)
- Lower the vehicle.
- Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
