Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Brake Master Cylinder Reservoir- Upper (2) - Install

CAUTION:

Brake Master Cylinder Reservoir Bracket Nut (1) - Install and tighten [2x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

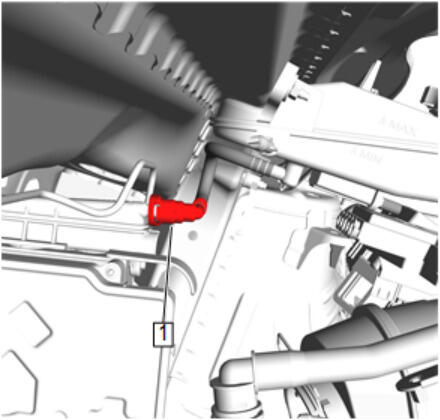

Quick Connect Fitting (1) @ Brake Master Cylinder - Connect
Courtesy of GENERAL MOTORS COMPANY

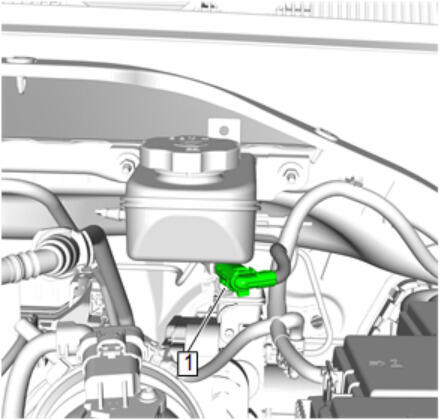

Electrical Connector (1) @ Brake Fluid Level Indicator Switch (2) - Connect
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Bleed the brake system. Hydraulic Brake System Bleeding (Pressure)
Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
