Removal Procedure
WARNING:
The battery must be disconnected to prevent the brake master cylinder from pressurizing the hydraulic system during its automated self diagnostic tests that can possibly occur when a door is opened or the key transmitter is activated. Failure to follow this precaution may cause personal injury.
WARNING:
- Drain and properly dispose of the brake fluid in the master cylinder reservoir.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Brake Master Cylinder Reservoir - Upper (2) - Remove - Brake Master Cylinder Reservoir Replacement (Attached)
Brake Master Cylinder Reservoir Bolt (1) - Remove
Remove the attached brake master cylinder reservoir (1) by lifting the front up and disengaging the rear clip.
Brake Master Cylinder Reservoir Grommet (1) - Remove and DISCARD [3x]

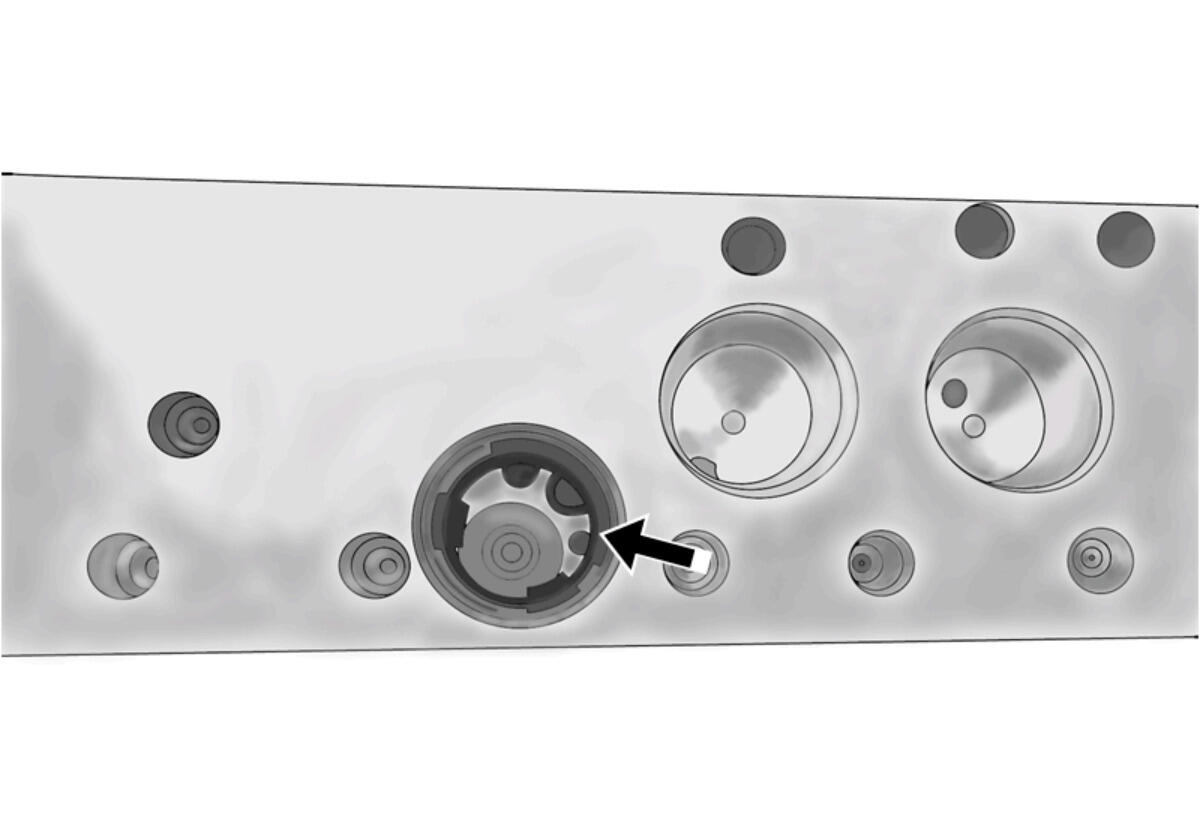

Note the location of the filter element for proper installation.
- Transfer components as necessary.
