Installation Procedure

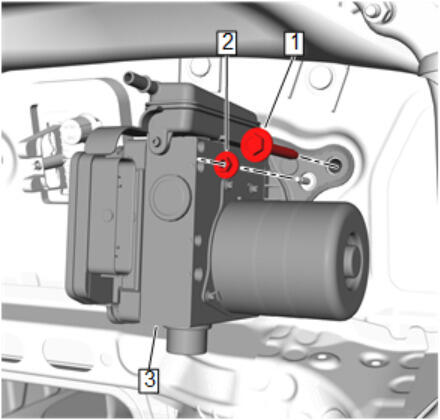

Brake Master Cylinder (3) - Install
- Brake Master Cylinder Bracket Nut (2) - Install and tighten 9 N.m (80 lb in)
- Instrument Panel Tie Bar Bolt (1) - Install and tighten 22 N.m (16 lb ft)

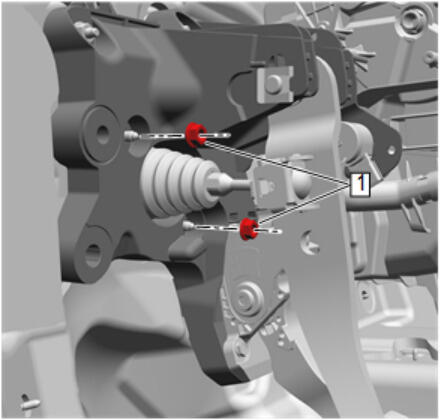

Brake and Accelerator Pedal Bracket Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Brake Pipe Fitting (1) @ Brake Pressure Modulator Valve - Install and tighten [4x] 18 N.m (13 lb ft)
Electrical Connector (1) @ Electronic Brake Control Module (2) - Connect

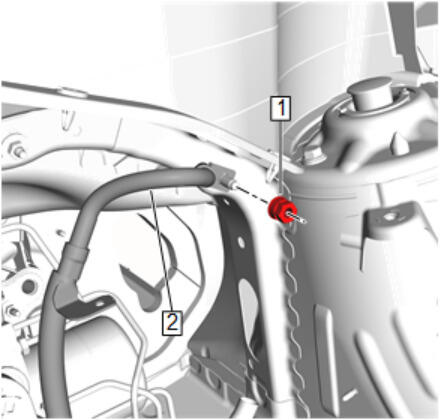

Battery Negative Cable (2) @ Front Wheelhouse Panel - Install
- Battery Negative Cable Ground Nut (1) @ Front Wheelhouse Panel - Install and tighten - Battery Negative Cable Replacement (L3T) , or Battery Negative Cable Replacement (LIH)

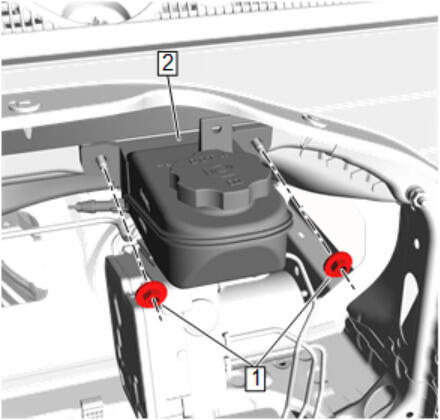

Brake Master Cylinder Reservoir- Upper (2) - Install - Brake Master Cylinder Reservoir Replacement (Upper) , or Brake Master Cylinder Reservoir Replacement (Attached)
Brake Pedal Push Rod Retainer (1) @ Brake Pedal Push Rod (3) - Install NEW
- Brake Pedal Push Rod (3) @ Brake Pedal (2) - Connect
- Floor Front Air Outlet Duct - Left Side - Install - Floor Front Air Outlet Duct Replacement - Left Side
- Battery Tray - Install - Battery Tray Replacement
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Program the electronic brake control module. Control Module References
- Bleed the brake system. Hydraulic Brake System Bleeding (Pressure)
- Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
- Connect the scan tool and perform the brake pressure test.
