Brake Pedal Pushrod Inspection

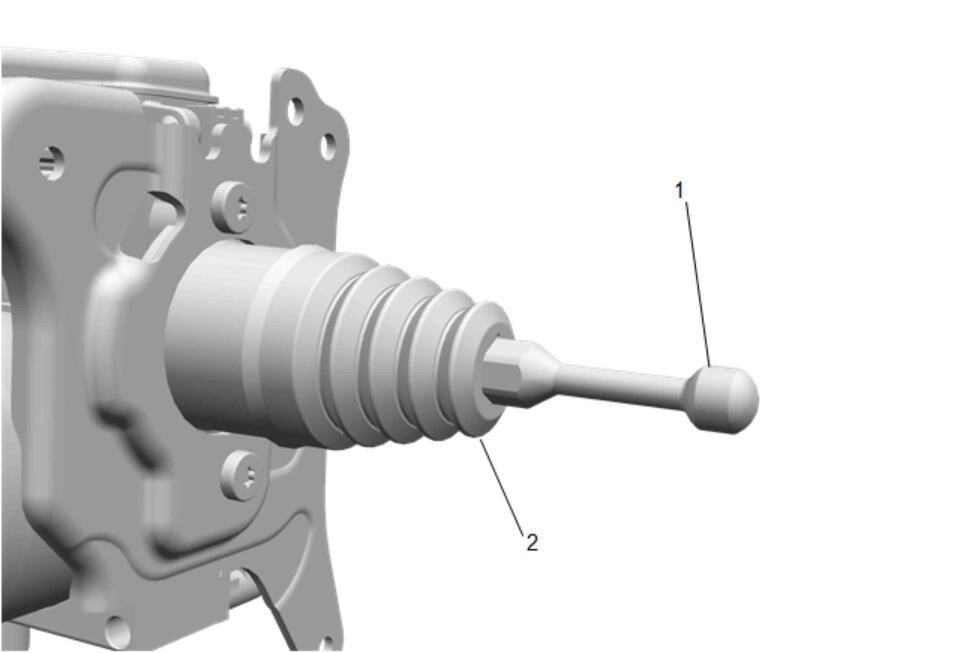

Reposition the pedal pushrod boot (2) toward the front of the vehicle to expose as much of the pedal pushrod (1) as possible.
- Inspect the brake pedal pushrod (1) for straightness.
- If the brake pedal pushrod (1) is not straight, then the pushrod requires replacement.
- Return the pedal pushrod boot (2) to its original position on the pedal pushrod (1).
