Rear Brake Shield Replacement

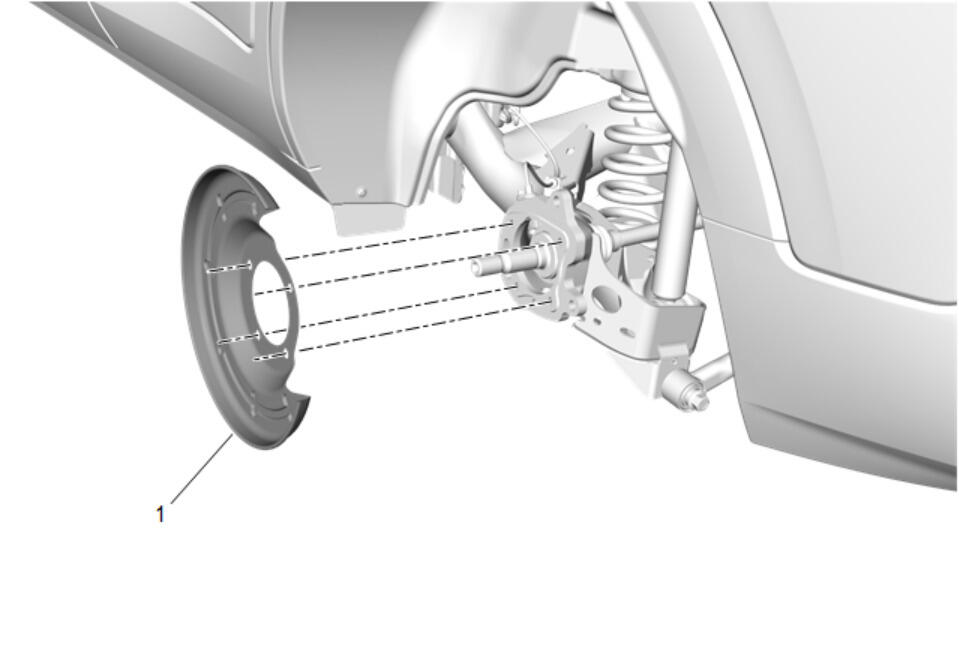

GM5216095Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Brake Dust Warning

Preliminary Procedures

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  3. Rear Wheel Bearing and Hub Replacement (AWD) , or Rear Wheel Bearing and Hub Replacement (FWD)
1 Rear Brake Shield
