Front Brake Caliper Bleeder Valve Replacement

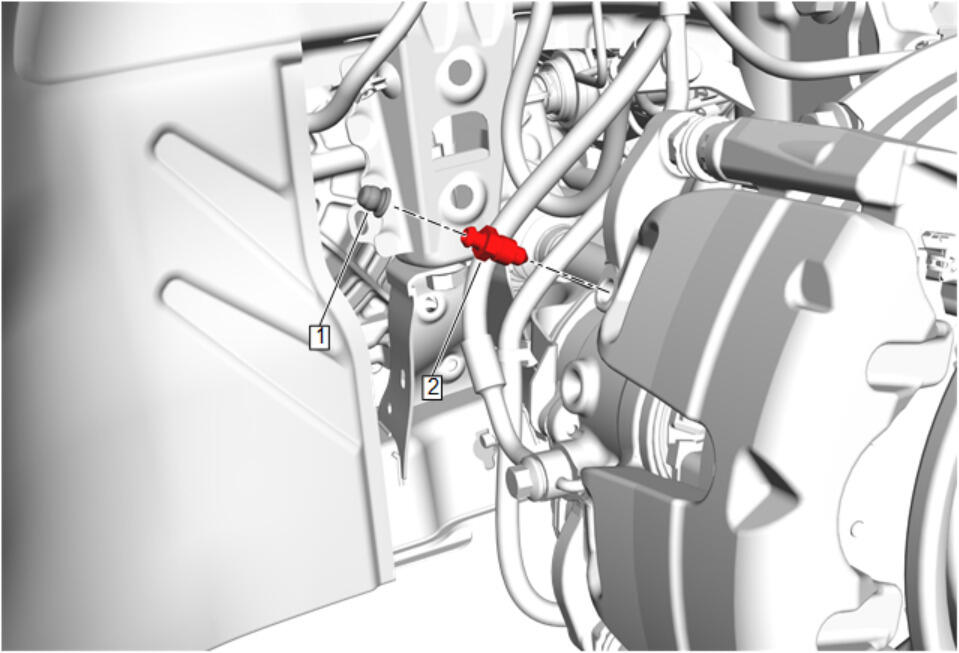

GM5216096Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

The battery must be disconnected to prevent the brake master cylinder from pressurizing the hydraulic system during its automated self diagnostic tests that can possibly occur when a door is opened or the key transmitter is activated. Failure to follow this precaution may cause personal injury.

WARNING:

Brake Dust Warning

WARNING:

Brake Fluid Irritant Warning

CAUTION:

Brake Fluid Effects on Paint and Electrical Components Caution

Preliminary Procedures

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle .
  3. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
1 Front Brake Caliper Bleeder Valve Cap
2 Front Brake Caliper Bleeder Valve
CAUTION:

Fastener Caution


Tighten
10 N.m (89 lb in)

Procedure

  1. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
  2. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
