Body Lock Pillar Upper Trim Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

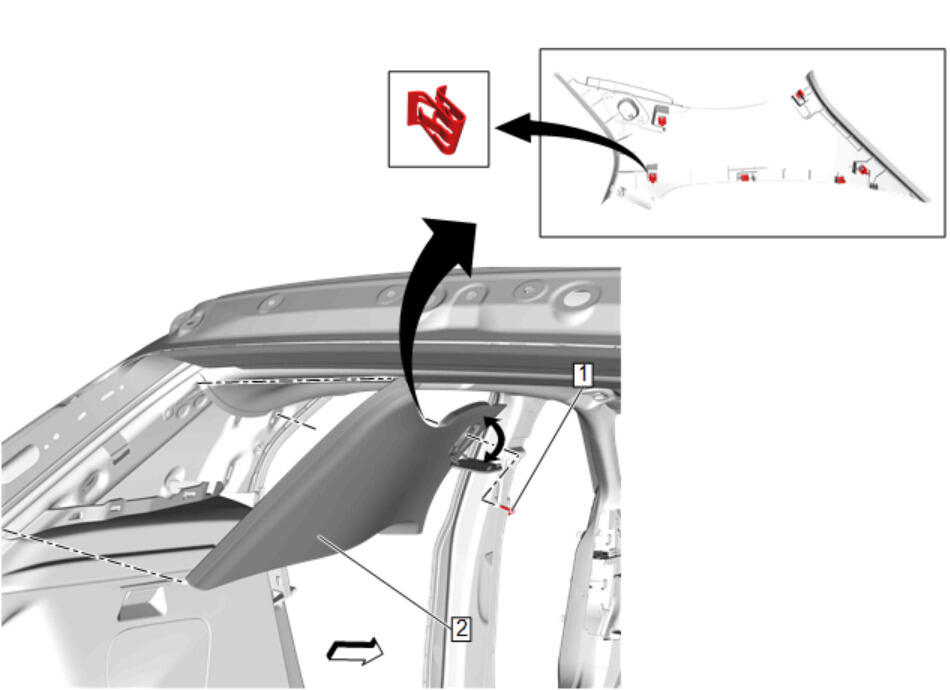

Callout	Component Name
1	Body Lock Pillar Upper Trim Panel Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in) Procedure  Use a flat bladed trim tool to open the fastener cap.
2	Body Lock Pillar Upper Trim Panel Procedure  Use a flat bladed plastic tool to remove.
