Liftgate Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

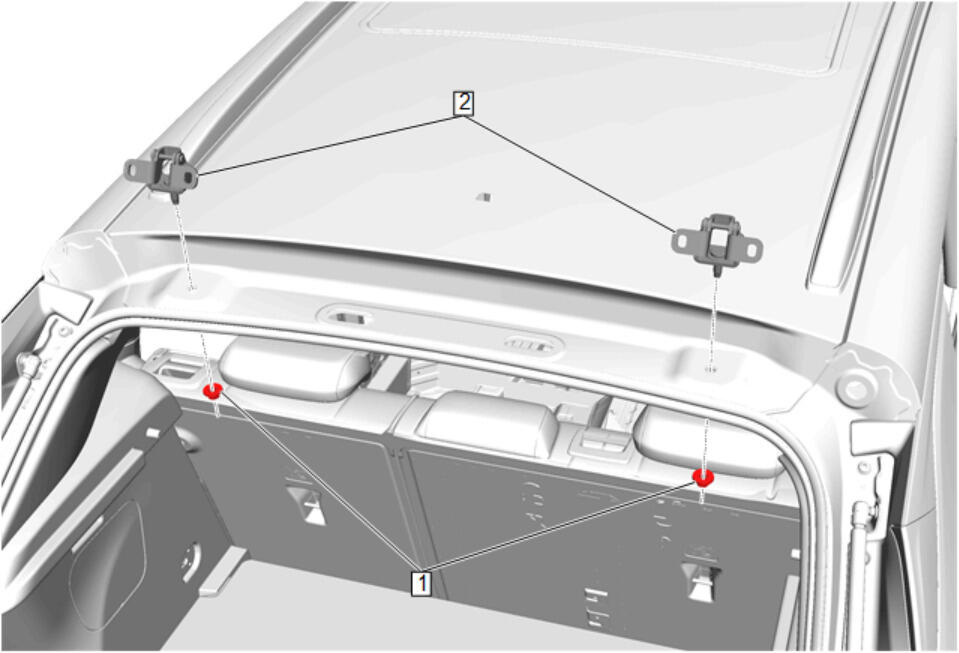

Callout	Component Name
Preliminary Procedures Liftgate Replacement (Manual) , or Liftgate Replacement (Power) Lower the rear headliner enough to access the liftgate hinge nuts. Headlining Trim Panel Replacement (with C3U) , or Headlining Trim Panel Replacement (without C3U) Mark the position of the hinges with a grease pencil.
1	Liftgate Hinge Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
2	Liftgate Hinge

Callout

Component Name

Preliminary Procedures

Liftgate Hinge Nut [2x]

CAUTION:

Tighten
58 N.m (43 lb ft)

Liftgate Hinge
